Owon SDS1104 oscilloscope
Details

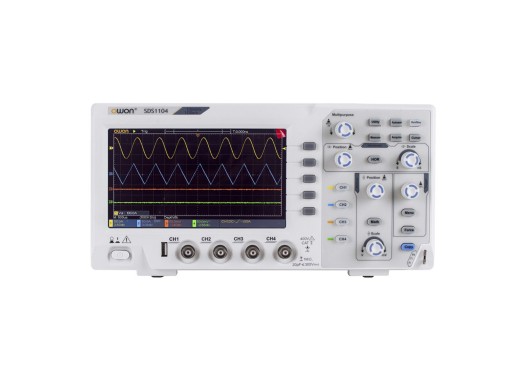

The Owon SDS1104 is a competitively priced oscilloscope with a sample rate of 1 GSa/s and a bandwidth of 100 MHz. With this oscilloscope, you have 4 channels at your disposal and it is possible to store 20 K points per measurement. There is a USB connection on the back for exporting measurement results to the PC, and a USB connection on the front for exporting to a USB memory stick.
Model overview
The models of the SDS1000 series differ mainly in the bandwidth and channels. The most important specifications are listed next to each other in the table below.
| Model | SDS1102 | SDS1104 | SDS1202 |
|---|---|---|---|
| Channels | 2 | 4 | 2 |
| Bandwidth | 100 MHz | 100 MHz | 200 MHz |
| Sample rate | 1 GSa/s | 1 GSa/s | 1 GSa/s |
| Price |
Specifications
| Memory depth | 20 Kpts |
| Rise time | ≤3.5 ns | Trigger types | Edge, Video |
| Vertical resolution | 8 bits |
| Vertical scale | 5 mV/div - 5 V/div |
| Horizontal scale | 2.0 ns/div ~ 100 s/div |
| Measuring parameters (vertical) | Vmax, Vmin, Vpp, Vtop, Vbase, Mean, Vmean, Vrms, |
| Measuring parameters (horizontal) | Period, Freq, +Wid, -Wid, Rise time, Fall time, +Dut, -Dut, Delay |
| Display | 7" 800x480 TFT LCD |
| Connectivity | USB (Host/Device) |
| Eleshop noise rating | ★ ★ ★ ★ ★ |
| Dimensions | 301 x 152 x 70 mm |
| Weight | 1.1 kg |
Accessories
The Owon SDS1104 oscilloscope comes with:
- USB cable
- Power cord
- 4 passive probes 100MHz
- Probe setting tool
Pros and cons
- Four channels
- High sample rate
Downloads
| Owon SDS1000 2CH series datasheet |  (744.37 KB) | Download |
| Owon SDS1000 series manual | (1.37 MB) | Download |
| Owon SDS1000 4CH series datasheet | (342.08 KB) | Download |
