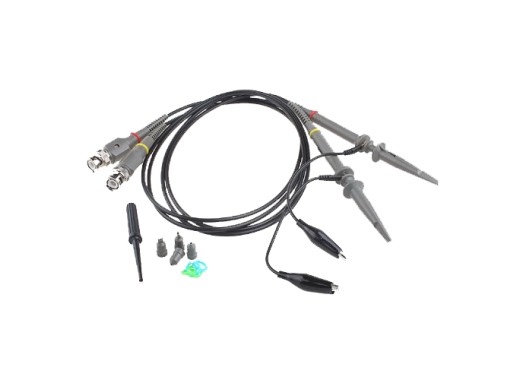

Set Owon oscilloscope probes 100 Mhz
Details
100 MHz probes suitable for usage with nearly all scopes below the 100 MHz bandwidth. Set of two probes. The probes can be set for 1x or 10x attenuation.
Also available in 60 and 200 MHz!
Specifications
| Measurement range voltage | 1x: 300 Vp-p 10x: 600 Vp-p |
| Measurement range frequency | 1x: 0 - 6 MHz 10x: 0 - 100 MHz |
| Input resistance | 1x: 1 MΩ 10x 10 MΩ |
| Input capacitance | 1x: 90 pF 10x:18pF |
| Weight | 64 g |
| Cable length | 120 cm |
