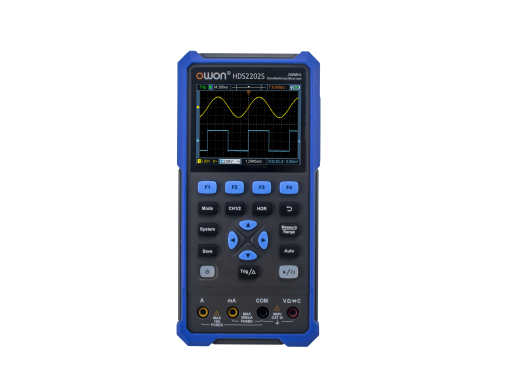

Owon HDS2202S handheld oscilloscope
Details
Note: the HDS2202S looks externally identical to the product shown in the images.
The HDS2202S is a portable dual-channel oscilloscope that can also be used as a multimeter and a function generator. The meter sports a 3.5" high-contrast colour display suitable for outdoor use and it runs on a pair of 18650 batteries, good for up to 6 hours of continuous use. You can hook up the meter to a PC host with USB-C to use it with Owon's desktop software, control it via SCPI or to use it with a power bank. Compared to the Hantek 2000 series oscilloscopes, the Owon HDS200 series are equipped with a slightly larger screen and larger internal memory. Furthermore, this series has 20000 counts as opposed to Hantek's 4000 counts resolution.
Signals can be recorded and stored internally. Its memory holds up to 8k data points. Waveforms can also be stored as image or CSV, to be exported via USB to a PC host.
Besides being an oscilloscope, it independently acts as a fully featured 20 000 count True-RMS multimeter. It has the capability to measure voltage, current, resistance, capacitance, continuity and diodes. The readings will be displayed comfortably large on the display as can be seen in the demonstration video below. Similar to conventional multimeters, it has auto ranging.
Model overview
The models of the HDS200 differ in their bandwidth and whether they have a function generator, as outlined in the table below.
| Model | HDS242 | HDS242S | HDS272 | HDS272S | HDS2102 | HDS2102S | HDS2202 | HDS2202S |
|---|---|---|---|---|---|---|---|---|
| Bandwidth | 40 MHz | 40 MHz | 70 MHz | 70 MHz | 100 MHz | 100 MHz | 200 MHz | 200 MHz |
| Function generator | No
| Yes
| No
| Yes
| No
| Yes
| No
| Yes
|
| Price |
Specifications
| Oscilloscope specifications | ||||||||||||||||||||||
| ||||||||||||||||||||||
| Multimeter mode specifications | ||||||||||||||||||||||
| ||||||||||||||||||||||
| Function generator mode specifications | ||||||||||||||||||||||
| ||||||||||||||||||||||
| Other modes | Continuity, diode test | |||||||||||||||||||||
| Display | 20,000 counts (multimeter mode) 3.5" colour LCD (320 x 240) | |||||||||||||||||||||
| Power supply | 2x 18650 battery (approx. 6 hours) | |||||||||||||||||||||
| Connectivity | USB-C | |||||||||||||||||||||
| Dimensions | 198 x 38 x 96 mm LxWxH | |||||||||||||||||||||
| Weight | 600 g (without batteries) | |||||||||||||||||||||
For more information, please refer to the user guide which you can download below.
Accessories
The HDS2202S comes by default with:
- 2x 18650 batteries
- USB cable
- Set of test leads
- Probe
- 2x BNC - alligator clips cable
- Power adapter
- Carrying pouch
Pros and cons
- Very affordable
- Doubles as a True-RMS multimeter and function generator
- USB features
- Minimal sensitivity of 10 mV/div
- Triggers on edges only
- Limited memory
- Drains battery when the meter is off
- Limited math functions
Downloads
| Owon HDS200(S) series user manual |  (1.64 MB) | Download |
| Owon HDS200(S) series datasheet | (151.53 KB) | Download |
| HDS200 Handbuch Deutsch | (1.44 MB) | Download |
