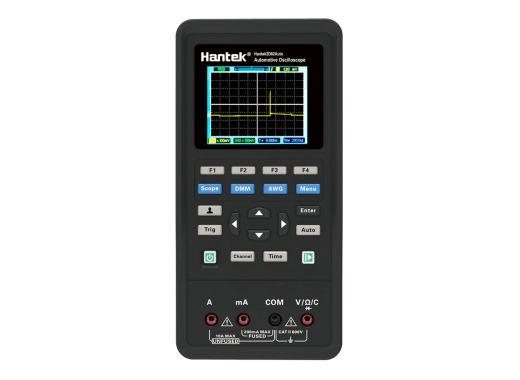

Hantek 2D82 Auto automotive oscilloscope
Details
The Hantek 2D82 is a combination instrument designed specifically for automotive use. It features oscilloscope, waveform generator and multimeter functions. In addition to this, the device has some automotive diagnostics built-in.
The 2D82 is battery powered and can be charged with the supplied usb-type-C charging cable. This cable is also suited for data transfer with either a PC or a mobile phone.
Automotive functions:
- Ignition diagnostics
- Air diagnostics
- Injector diagnostics
- Sensor diagnostics
- Bus diagnostics
- Injector diagnostics
- Charge diagnostics
Accessoires
| Type II | Type III | |
|---|---|---|
| AC/DC current clamp CC65 | - | 1 |
| AC/DC current clamp CC650 | - | 1 |
| 20:1 Attenuator | 2 | 2 |
| Auto ignition probe | 2 | 2 |
| Large crocodile clips | 1 | 2 |
| Auto test leads | 2 | 2 |
| 6-Way breakout leads 1mm | - | 1 |
| 6-Way breakout leads 1.5mm | 1 | 1 |
| 6-Way breakout leads 2.3mm | - | 1 |
| 6-Way breakout leads 2.8mm | 1 | 1 |
| Needle probe set | 1 | 2 |
| COP extension cord | 2 | 2 |
| Multimeter probe | 1 | 1 |
| Crocodile clip leads | 2 | 2 |
| Breakout leads | - | 1 |
| Toolkit | 1 | 1 |
| Type C lead | 1 | 1 |
| 5V/2A USB Charger | 1 | 1 |
Specifications
| Oscilloscope function | |
| Bandwidth | 80 MHz |
| Channels | 2 |
| Sample rate | 250 MSa/s (single-channel), 125 MSa/s (dual-channel) |
| A/D converter | 8 bit |
| Vertical scale | 10 mV/div - 10V/div |
| Waveform generator function | |
| Frequency | Sinus(1Hz - 25MHz), Square(1Hz - 10 MHz), Ramp(1Hz - 1 MHz), Trapezoid(1Hz - 5 MHz) |
| Sampling | 250 MSa/s |
| Output Impedance | 50 Ω |
| Multimeter function | |
| Max resolution | 4000 counts |
| Max input voltage | AC 600V, DC 800V |
| Max input current | AC 10A, DC 10A |
| Input Impedance | 10 M Ω |
| Other specifications | |
| Display | 2,8 Inch TFT (320x240) |
| Battery | 2 x 2600mA |
Pros and cons
- Many functions in one device
- Includes a lot of accessories
- Built-in self test
Downloads
| Manual Hantek 2D82Auto |  (1.14 MB) | Download |
| Quick Guide Hantek 2D82Auto | (301.54 KB) | Download |
| Hantek 2000 series quick guide | (527.09 KB) | Download |
| Hantek 2000 series user manual | (862.62 KB) | Download |
| Hantek 2000 series Windows software |  (14.54 MB) | Download |
