Owon HDS2102S handheld oscilloscope

Eleshop
Test & measure
Oscilloscopes
All oscilloscopes
Owon HDS2102S handheld oscilloscope

185.95 €185.95 Excl. VAT

Loading stock info

Product number: ELE005357

Lowest price guaranteed

Details

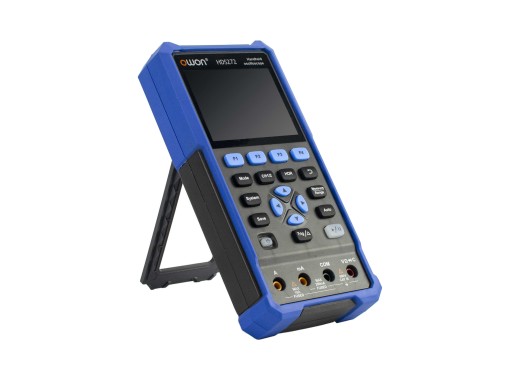

Note: the HDS2102S looks externally identical to the product shown in the images.

The HDS2102S is a portable dual-channel oscilloscope that can also be used as a multimeter and a function generator. The meter sports a 3.5" high-contrast colour display suitable for outdoor use and it runs on a pair of 18650 batteries, good for up to 6 hours of continuous use. You can hook up the meter to a PC host with USB-C to use it with Owon's desktop software, control it via SCPI or to use it with a power bank. Compared to the Hantek 2000 series oscilloscopes, the Owon HDS200 series are equipped with a slightly larger screen and larger internal memory. Furthermore, this series has 20000 counts as opposed to Hantek's 4000 counts resolution.

Signals can be recorded and stored internally. Its memory holds up to 8k data points. Waveforms can also be stored as image or CSV, to be exported via USB to a PC host.

Besides being an oscilloscope, it independently acts as a fully featured 20 000 count True-RMS multimeter. It has the capability to measure voltage, current, resistance, capacitance, continuity and diodes. The readings will be displayed comfortably large on the display as can be seen in the demonstration video below. Similar to conventional multimeters, it has auto ranging.

Model overview

The models of the HDS200 differ in their bandwidth and whether they have a function generator, as outlined in the table below.

Model	HDS242	HDS242S	HDS272	HDS272S	HDS2102	HDS2102S	HDS2202	HDS2202S
Bandwidth	40 MHz	40 MHz	70 MHz	70 MHz	100 MHz	100 MHz	200 MHz	200 MHz
Function generator	No	Yes	No	Yes	No	Yes	No	Yes
Price	105 €105.00 Excl. VAT	128.1 €128.10 Excl. VAT	144.63 €144.63 Excl. VAT	144.63 Regular Price: €165.29 Now: €144.63 Excl. VAT	185.95 €185.95 Excl. VAT	185.95 €185.95 Excl. VAT	223.14 €223.14 Excl. VAT	247.93 €247.93 Excl. VAT

Specifications

Oscilloscope specifications

Sample rate	500 MSa/s (single channel) 250 MSa/s (dual channel)
Memory depth	8 kpts (single channel) 4 kpts (dual channel)
Vertical resolution	8 bit
Trigger types	Edge
Waveform capture rate	10 000 wfms/s
Rise time	≤5 ns typ.
Vertical scale	10 mV/div - 10 V/div
Horizontal scale	2 ns/div - 1000 s/div
Measuring parameters (vertical)	Vmax, Vmin, Vpp, Mean, Amplitude
Measuring parameters (horizontal)	Period, Freq

Multimeter mode specifications

Specifications	Range	Accuracy (smallest range)
DC voltage	0.01 mV - 1000 V	±0.5% + 5
AC voltage	0.01 mV - 750 V	±0.8% + 5
DC current	10 μA - 10 A	±0.8% + 2
AC current	10 μA - 10 A	±1% + 5
Resistance	0.01 Ω - 100 MΩ	±0.8% + 3
Capacitance	1 pF - 2 mF	±3% + 10

Function generator mode specifications

Channels	1
Amplitude	0.01 Vpp ~ 2.5 Vpp
Frequency	25 MHz (sine)
Sample rate	125 MSa/s
Vertical resolution	14 bits
Waveform length	8 kpts
Frequency resolution	0.1 Hz
Waveform types	sine, square, ramp, pulse, sinc, bessely, besselj, stair up, stair down, stair up-down, att alt, amp alt
