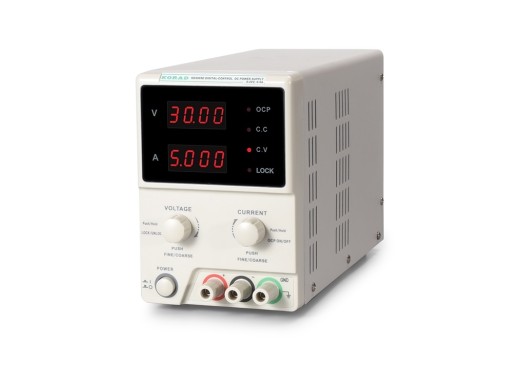

Korad KD3005D power supply with safety terminals
Details
The Korad KD3005D is a single-channel, linear DC power supply with safety terminals delivering up to 150W of power. It supplies constant voltage of 0-30V and constant current of 0-5A. This power supply features two separate 4 digit displays for voltage and current with the resolution of 10mV and 1mA accordingly. The Korad KD3005D has built-in protection from over-current as well as active cooling systems . The design ensures low noise and ripple, making it reliable for more precise measurements. This version of the Korad KD3005D comes with safety terminals. It is just like the other screw version, however with safer measures.
The device was designed for hardware testing and repairing. The Korad KD3005D is a perfect choice for a school or personal laboratory.
Specifications
| Total power | 150 W |
| Outputs | 1 |
| Output switch | Only ON or OFF |
| Voltage range | 0 - 30 V |
| Current range | 0 - 5 A |
| Resolution | 10 mV / 1 mA |
| Ripple | ≤ 2 mVrms / ≤ 3 mVrms |
| Protection | OCP |
| Interfaces | RS232, USB |
| Display | 4-digit display |
| Dimensions | 260 x 110 x 163 mm |
| Weight | 4.25 kg |
Downloads
