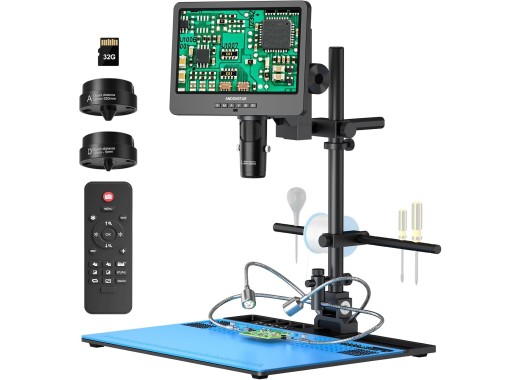

The Andonstar AD249S-Max-ES is a complete digital microscope kit with 3 magnification lenses with ratios of 18-720x, 1800-2040x, and 60-240x. Unlike other digital microscopes, the lenses are interchangeable, which provides the microscope a larger working range of magnification that can be used for inspecting PCBs up to tiny SMD components. Images can be viewed on the 10.1" monitor, displayed on an external screen via HDMI, or connected to a PC to display and control settings. Recorded pictures and videos can be stored directly on the microscope with a resolution of up to 2160p at 24fps or 720p at 120fps. Additionally, this kit includes a glass slide holder and a set of slides that can be used for holding and observing samples.
This microscope also comes with an endoscope, which lets you get a second image in parallel with the main image. The endoscope is flexible and can be positioned to view harder to reach places. The display allows you to switch between images or display them simultaneously in a PiP mode.
Note: The endoscope should not be used for medical purposes.
| Model | AD249S Plus | AD249S Max-ES |
|---|---|---|
| Stand size | 40 x 30 x 43 cm | 46 x 37 x 47 cm |
| Endoscope included | No |
Yes |
| Price |
| Microscope type | Digital image/video |
| Max. video resolution | 2160p |
| Max. image resolution | 5600x4200 Px |
| Frame rate | 120 fps |
| Lens magnification | Lens A: 18-720x Lens D: 1800-2040x Lens L: 60-240x |
| Lens focus range | Lens A: 12-320 mm Lens D: 4-5 mm Lens L: 90-300 mm |
| Interfaces | USB, HDMI |
| Display | 10.1" |
| Storage | SD-card up to 32 GB |
| Light source | Yes, 2 LEDs |
The Andonstar AD249 MAX-ES comes with:
| Andonstar 249S user manual | Download |
