Andonstar AD409 SA microscope

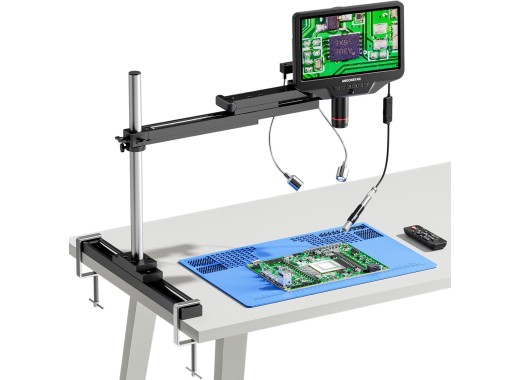

The AD409 SA is a premium digital microscope from Andonstar, and is suitable for all PCB inspection and soldering work. This 2-in-1 tool pairs a 4 megapixel microscope with up to 300x magnification and a 3D endoscope, so you can switch between flat-surface inspection and probing inside enclosures. The slide rail arm stand gives a large working area and moves the microscope through 360 degrees with one hand, while dual metal C-clamps fix the stand to any workbench up to 10cm thick.

Two LED spots provide even illumination, and the included UV filter protects the lens from heat, smoke and dust. The microscope can be operated from the front-panel buttons or the included IR remote, which controls image settings, digital zoom and the LED spots. Photos and video are saved to a microSD card up to 64GB (not included).

Live images are shown on the 10.1-inch IPS screen and can be mirrored over HDMI, captured on a Windows 7/8/10 PC via USB with Andonstar's measurement software, or streamed wirelessly to iOS and Android via the Andonstar app. The included 3D endoscope (HDMI only) has a 12mm probe on a 110cm cable and reaches up to 260x, ideal for inspecting inside enclosures and small parts.

Model overview

Specifications

Accessories

The Andonstar AD409 SA microscope comes with the following accessories:

• 1x 3D endoscope with rack and accessories
• 1x IR remote
• 1x UV filter (pre-assembled in front of the lens)
• 2x C-clamps
• 1x Wrench
• 1x Soldering mat
• 1x HDMI cable
• 1x USB cable
• 1x Power cable and power adapter

Downloads

Andonstar AD409 user manual

(2.79 MB)

Download
