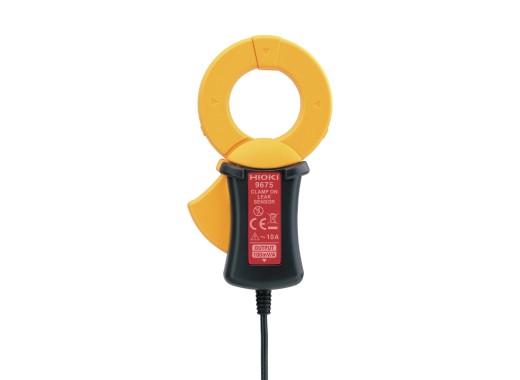

Hioki 9675 precision AC clamp leak current sensor

298 €298.00 Excl. VAT
Loading stock info
  •
Product number: ELE009665

Be the first to review this product

Lowest price guaranteed

Details

The Hioki 9675 Precision AC clamp leak current Sensor is designed to measure AC current leaks up to 10A. This sensor is designed for measuring small currents and leakages. The sensor is able to be installed in a control cabinet, but can also be used for on-site testing.

Model overview

Model Description Bandwidth Rated Current Output Rate Basic Accuracy Max. Core Diameter Price
Hioki 9694 AC Clamp-on Sensor 5 A 40 Hz - 5 kHz 5 A 10 mV/A ±0.3% 15 mm 298 €298.00 Excl. VAT
Hioki 9657-10 AC Clamp-on Leak Sensor 10 A 40 Hz - 5 kHz 10 A 100 mV/A ±1.0% 40 mm 298 €298.00 Excl. VAT
Hioki 9675 AC Clamp-on Leak Sensor 10 A 40 Hz - 5 kHz 10 A 100 mV/A ±1.0% 30 mm 298 €298.00 Excl. VAT
Hioki 9660 AC Clamp-on Sensor 100 A 40 Hz - 5 kHz 100 A 1 mV/A ±0.3% / ±1.0% 15 mm 268 €268.00 Excl. VAT
Hioki 9661 AC Clamp-on Sensor 500 A 40 Hz - 5 kHz 500 A 1 mV/A ±0.3% / ±1.0% 46 mm 298 €298.00 Excl. VAT
Hioki CT9667-01 AC Flexible Current Sensor 5000 A 10 Hz - 20 kHz 500 A / 5000 A 1 mV/A (500 A), 0.1 mV/A (5000 A) ±2.0% 100 mm 578 €578.00 Excl. VAT
Hioki CT9667-02 AC Flexible Current Sensor 5000 A 10 Hz - 20 kHz 500 A / 5000 A 1 mV/A (500 A), 0.1 mV/A (5000 A) ±2.0% 180 mm 578 €578.00 Excl. VAT
Hioki CT9667-03 AC Flexible Current Sensor 5000 A 10 Hz - 20 kHz 500 A / 5000 A 1 mV/A (500 A), 0.1 mV/A (5000 A) ±2.0% 254 mm 588 €588.00 Excl. VAT
Hioki 9669 AC Clamp-on Sensor 1000 A 40 Hz - 5 kHz 1000 A 0.5 mV/A ±1.0% 55 mm 398 €398.00 Excl. VAT

Specifications (Specificaties)

Cable length 3 m
Dimensions 112.5 x 60 x 23.6 mm
Weight 380 g

Downloads

PW3360_20_Data_sheet_EN
pdf (3.3 MB)Download
9675_Manual_EN
pdf (174.64 KB)Download
