Hioki 9661 clamp on sensor

298 €298.00 Excl. VAT
Loading stock info
  •
Product number: ELE009658

Be the first to review this product

Lowest price guaranteed

Details

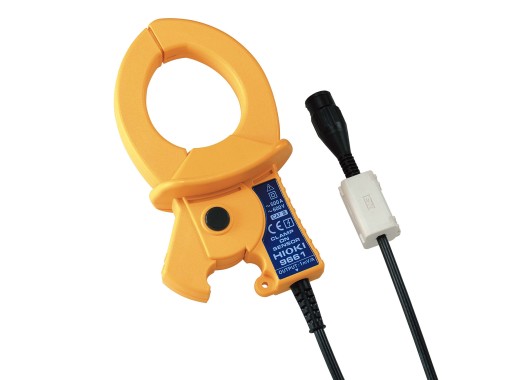

The Hioki 9661 Clamp-On Sensor is designed to measure AC current up to 500A. With it's compact design the sensor is ideal for in narrow spaces and electrical environments.

Model overview

Model Description Bandwidth Rated Current Output Rate Basic Accuracy Max. Core Diameter Price
Hioki 9694 AC Clamp-on Sensor 5 A 40 Hz - 5 kHz 5 A 10 mV/A ±0.3% 15 mm 298 €298.00 Excl. VAT
Hioki 9657-10 AC Clamp-on Leak Sensor 10 A 40 Hz - 5 kHz 10 A 100 mV/A ±1.0% 40 mm 298 €298.00 Excl. VAT
Hioki 9675 AC Clamp-on Leak Sensor 10 A 40 Hz - 5 kHz 10 A 100 mV/A ±1.0% 30 mm 298 €298.00 Excl. VAT
Hioki 9660 AC Clamp-on Sensor 100 A 40 Hz - 5 kHz 100 A 1 mV/A ±0.3% / ±1.0% 15 mm 268 €268.00 Excl. VAT
Hioki 9661 AC Clamp-on Sensor 500 A 40 Hz - 5 kHz 500 A 1 mV/A ±0.3% / ±1.0% 46 mm 298 €298.00 Excl. VAT
Hioki CT9667-01 AC Flexible Current Sensor 5000 A 10 Hz - 20 kHz 500 A / 5000 A 1 mV/A (500 A), 0.1 mV/A (5000 A) ±2.0% 100 mm 578 €578.00 Excl. VAT
Hioki CT9667-02 AC Flexible Current Sensor 5000 A 10 Hz - 20 kHz 500 A / 5000 A 1 mV/A (500 A), 0.1 mV/A (5000 A) ±2.0% 180 mm 578 €578.00 Excl. VAT
Hioki CT9667-03 AC Flexible Current Sensor 5000 A 10 Hz - 20 kHz 500 A / 5000 A 1 mV/A (500 A), 0.1 mV/A (5000 A) ±2.0% 254 mm 588 €588.00 Excl. VAT
Hioki 9669 AC Clamp-on Sensor 1000 A 40 Hz - 5 kHz 1000 A 0.5 mV/A ±1.0% 55 mm 398 €398.00 Excl. VAT

Specifications

Dimensions 78 x 152 x 42 mm
Weight 380 g
Cable length 3 m

Downloads

9661_Manual_JP,EN
pdf (504.47 KB)Download
PW3360_20_Data_sheet_EN
pdf (3.3 MB)Download
