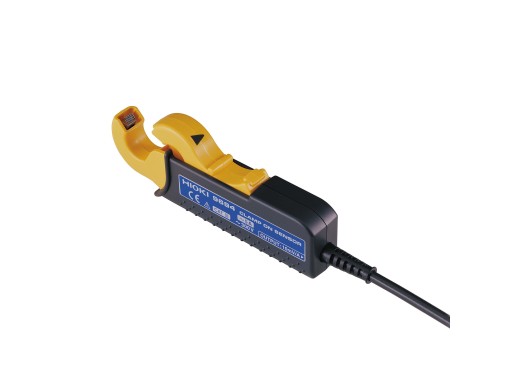

Hioki 9694 AC clamp on sensor

298 €298.00 Excl. VAT
Loading stock info
  •
Product number: ELE009660

Be the first to review this product

Lowest price guaranteed

Details

The Hioki 9694 Clamp On Sensor is designed to measure AC current up to 5A in low-voltage circuits. With it's compact design the sensor is ideal for use in narrow spaces such as control cabinets.

Model overview

Model Description Bandwidth Rated Current Output Rate Basic Accuracy Max. Core Diameter Price
Hioki 9694 AC Clamp-on Sensor 5 A 40 Hz - 5 kHz 5 A 10 mV/A ±0.3% 15 mm 298 €298.00 Excl. VAT
Hioki 9657-10 AC Clamp-on Leak Sensor 10 A 40 Hz - 5 kHz 10 A 100 mV/A ±1.0% 40 mm 298 €298.00 Excl. VAT
Hioki 9675 AC Clamp-on Leak Sensor 10 A 40 Hz - 5 kHz 10 A 100 mV/A ±1.0% 30 mm 298 €298.00 Excl. VAT
Hioki 9660 AC Clamp-on Sensor 100 A 40 Hz - 5 kHz 100 A 1 mV/A ±0.3% / ±1.0% 15 mm 268 €268.00 Excl. VAT
Hioki 9661 AC Clamp-on Sensor 500 A 40 Hz - 5 kHz 500 A 1 mV/A ±0.3% / ±1.0% 46 mm 298 €298.00 Excl. VAT
Hioki CT9667-01 AC Flexible Current Sensor 5000 A 10 Hz - 20 kHz 500 A / 5000 A 1 mV/A (500 A), 0.1 mV/A (5000 A) ±2.0% 100 mm 578 €578.00 Excl. VAT
Hioki CT9667-02 AC Flexible Current Sensor 5000 A 10 Hz - 20 kHz 500 A / 5000 A 1 mV/A (500 A), 0.1 mV/A (5000 A) ±2.0% 180 mm 578 €578.00 Excl. VAT
Hioki CT9667-03 AC Flexible Current Sensor 5000 A 10 Hz - 20 kHz 500 A / 5000 A 1 mV/A (500 A), 0.1 mV/A (5000 A) ±2.0% 254 mm 588 €588.00 Excl. VAT
Hioki 9669 AC Clamp-on Sensor 1000 A 40 Hz - 5 kHz 1000 A 0.5 mV/A ±1.0% 55 mm 398 €398.00 Excl. VAT

Specifications

Cable length 3 m
Dimensions 135 x 46 x 24 mm
Weight 230 g

Downloads

9694_Manual_JP,EN
pdf (510.75 KB)Download
PW3360_20_Data_sheet_EN
pdf (3.3 MB)Download
