Hioki 9669 AC clamp on sensor

398 €398.00 Excl. VAT
Loading stock info
  •
Product number: ELE009659

Be the first to review this product

Lowest price guaranteed

Details

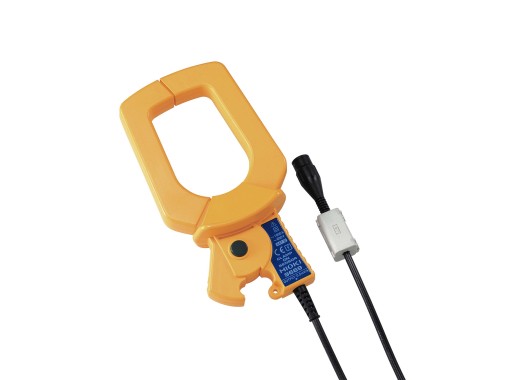

The Hioki 9669 is a clamp-on current sensor for AC current measurements up to 1000A. Making it well suited for applications in power quality analysis and monitroing. It has a 3 meter long cable with a BNC connector

Model overview

Model Description Bandwidth Rated Current Output Rate Basic Accuracy Max. Core Diameter Price
Hioki 9694 AC Clamp-on Sensor 5 A 40 Hz - 5 kHz 5 A 10 mV/A ±0.3% 15 mm 298 €298.00 Excl. VAT
Hioki 9657-10 AC Clamp-on Leak Sensor 10 A 40 Hz - 5 kHz 10 A 100 mV/A ±1.0% 40 mm 298 €298.00 Excl. VAT
Hioki 9675 AC Clamp-on Leak Sensor 10 A 40 Hz - 5 kHz 10 A 100 mV/A ±1.0% 30 mm 298 €298.00 Excl. VAT
Hioki 9660 AC Clamp-on Sensor 100 A 40 Hz - 5 kHz 100 A 1 mV/A ±0.3% / ±1.0% 15 mm 268 €268.00 Excl. VAT
Hioki 9661 AC Clamp-on Sensor 500 A 40 Hz - 5 kHz 500 A 1 mV/A ±0.3% / ±1.0% 46 mm 298 €298.00 Excl. VAT
Hioki CT9667-01 AC Flexible Current Sensor 5000 A 10 Hz - 20 kHz 500 A / 5000 A 1 mV/A (500 A), 0.1 mV/A (5000 A) ±2.0% 100 mm 578 €578.00 Excl. VAT
Hioki CT9667-02 AC Flexible Current Sensor 5000 A 10 Hz - 20 kHz 500 A / 5000 A 1 mV/A (500 A), 0.1 mV/A (5000 A) ±2.0% 180 mm 578 €578.00 Excl. VAT
Hioki CT9667-03 AC Flexible Current Sensor 5000 A 10 Hz - 20 kHz 500 A / 5000 A 1 mV/A (500 A), 0.1 mV/A (5000 A) ±2.0% 254 mm 588 €588.00 Excl. VAT
Hioki 9669 AC Clamp-on Sensor 1000 A 40 Hz - 5 kHz 1000 A 0.5 mV/A ±1.0% 55 mm 398 €398.00 Excl. VAT

Specifications

Dimensions 188 x 99.5 x 42 mm
Weight 590 g
Cable length 3 m

Downloads

9669_Manual_JP,EN
pdf (671.19 KB)Download
PW3360_20_Data_sheet_EN
pdf (3.3 MB)Download
