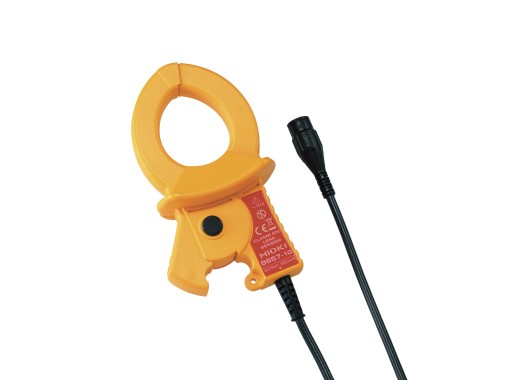

Hioki 9657-10 precision AC clamp leak current sensor

298 €298.00 Excl. VAT
Loading stock info
  •
Product number: ELE009664

Be the first to review this product

Lowest price guaranteed

Details

The Hioki 9657-10 Precision AC clamp leak current Sensor is designed to measure AC current leaks up to 10A. This sensor is designed for measuring low-level currents and leakages. With a output signal of 100mV/A, it allows for precise measurements when combined with the appropriate measuring devices.

Modeloverview

Model Description Bandwidth Rated Current Output Rate Basic Accuracy Max. Core Diameter Price
Hioki 9694 AC Clamp-on Sensor 5 A 40 Hz - 5 kHz 5 A 10 mV/A ±0.3% 15 mm 298 €298.00 Excl. VAT
Hioki 9657-10 AC Clamp-on Leak Sensor 10 A 40 Hz - 5 kHz 10 A 100 mV/A ±1.0% 40 mm 298 €298.00 Excl. VAT
Hioki 9675 AC Clamp-on Leak Sensor 10 A 40 Hz - 5 kHz 10 A 100 mV/A ±1.0% 30 mm 298 €298.00 Excl. VAT
Hioki 9660 AC Clamp-on Sensor 100 A 40 Hz - 5 kHz 100 A 1 mV/A ±0.3% / ±1.0% 15 mm 268 €268.00 Excl. VAT
Hioki 9661 AC Clamp-on Sensor 500 A 40 Hz - 5 kHz 500 A 1 mV/A ±0.3% / ±1.0% 46 mm 298 €298.00 Excl. VAT
Hioki CT9667-01 AC Flexible Current Sensor 5000 A 10 Hz - 20 kHz 500 A / 5000 A 1 mV/A (500 A), 0.1 mV/A (5000 A) ±2.0% 100 mm 578 €578.00 Excl. VAT
Hioki CT9667-02 AC Flexible Current Sensor 5000 A 10 Hz - 20 kHz 500 A / 5000 A 1 mV/A (500 A), 0.1 mV/A (5000 A) ±2.0% 180 mm 578 €578.00 Excl. VAT
Hioki CT9667-03 AC Flexible Current Sensor 5000 A 10 Hz - 20 kHz 500 A / 5000 A 1 mV/A (500 A), 0.1 mV/A (5000 A) ±2.0% 254 mm 588 €588.00 Excl. VAT
Hioki 9669 AC Clamp-on Sensor 1000 A 40 Hz - 5 kHz 1000 A 0.5 mV/A ±1.0% 55 mm 398 €398.00 Excl. VAT

Specifications (Specificaties)

Cable length 3 m
Dimensions 145 x 74 x 42 mm
Weight 380 g

Downloads

PW3360_20_Data_sheet_EN
pdf (3.3 MB)Download
9657-10_Manual_EN
pdf (867.08 KB)Download
