Harogic VNB-60 vector network analyser
Details

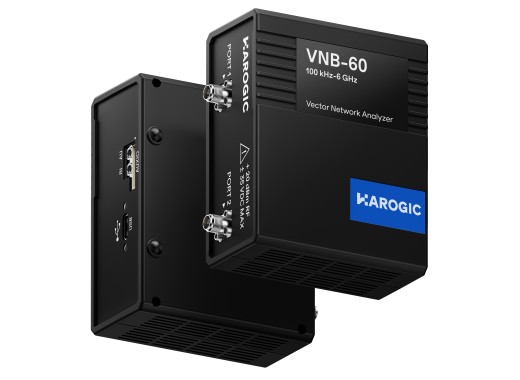

The Harogic VNB-60 is a compact USB vector network analyser with a frequency range of 100 kHz to 6 GHz. The VNB-60 has two ports equipped with high-performance integrated directional couplers, which allow it to achieve an effective directivity of ≥40 dB, and a dynamic range between 100 dB and 120 dB. The VNA can perform S-parameters (S11, S12, S21, S22) measurements on RF components such as filters, amplifiers, cables, and antennas. Measurements can be displayed in multiple formats such as logarithmic magnitude, linear magnitude, phase, real, imaginary, SWR, and Smith chart.
Unlike most other VNA's, the VNB-60 comes included with an external ECB-60 electronic calibration module. Furthermore, the included amplitude- and phase-stable cables ensure that measurement errors are avoided, which also simplifies the calibrations process. The VNB-60 comes with Harogic's VNStudio software alongside the ability for S2P/CSV data export. As the VNA can be connected to computer with a single USB-C cable, it is ideal for space constrained setups or field work.
Looking for a standalone VNA with a display? Then consider Harogic's PNB-60 vector network analyser.
Specifications
| Bandwidth | 100 kHz - 6 GHz |
| Ports | 2x SMA-Female (50Ω) |
| Frequency resolution | ≤ 10 Hz |
| Amplitude resolution | 0.25 dB |
| Dynamic range | 100 - 120 dB |
| Interfaces | USB host |
| Dimensions | 86 x 70 x 36 mm |
| Weight | 246 g |
Accessories
The VNB-60 comes by default with:
- USB cable
- Wrench set
- ECB-60 electronic calibration module
- SMA Female-to-Female Adapter
- 2x CKB Series Armored Amplitude- and Phase-Stable Cables
- 2x Matched Loads
Pros and cons
- Great price for the specifications
- ECB-60 calibration module comes included
- Full S-parameter measurements
