Harogic PNB-60 vector network analyser

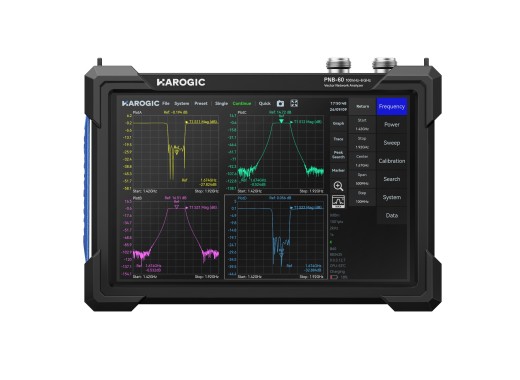

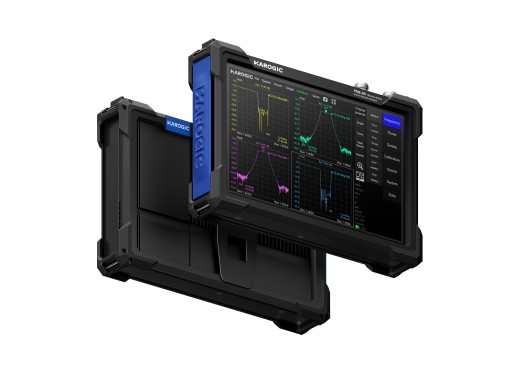

The Harogic PNB-60 is a handheld vector network analyser with a frequency range of 100 kHz to 6 GHz. The PNB-60 has two ports equipped with high-performance integrated directional couplers, which allow it to achieve an effective directivity of ≥40 dB, and a dynamic range between 100 dB and 120 dB. The VNA can perform S-parameters (S11, S12, S21, S22) measurements on RF components such as filters, amplifiers, cables, and antennas. Measurements can be displayed in multiple formats such as logarithmic magnitude, linear magnitude, phase, real, imaginary, SWR, and Smith chart.

Unlike most other VNA's, the PNB-60 comes included with an external ECB-60 electronic calibration module. Furthermore, the included amplitude- and phase-stable cables ensure that measurement errors are avoided, which also simplifies the calibrations process. The PNB-60 comes preinstalled with Harogic's VNStudio software alongside the ability for S2P/CSV data export and standard SCPI commands over LAN/USB for remote control or automated testing. The large 10.1" IPS display and 5-hour battery life make this an ideal instrument for portability and field work, without compromising on performance.

Looking for a USB VNA without a display? Then consider Harogic's VNB-60 vector network analyser.

Specifications

Accessories

The PNB-60 comes by default with:

• Power adapter
• USB cable
• Wrench set
• ECB-60 electronic calibration module
• SMA Female-to-Female Adapter
• 2x CKB Series Armored Amplitude- and Phase-Stable Cables
• 2x Matched Loads

Downloads

Harogic PNB-60 user manual

(766.74 KB)

Download
