LiteVNA 67 vector network analyser
Details

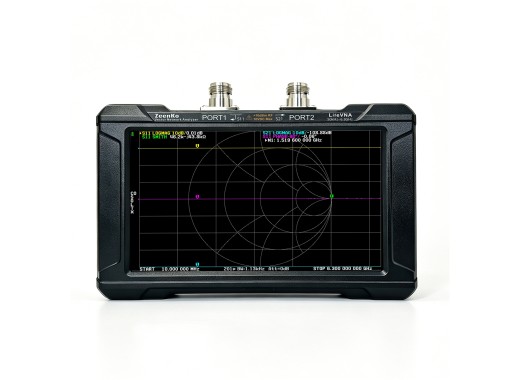

The LiteVNA 67 is a portable vector network analyser, and is suitable for all common RF component, antenna, and filter measurements. Furthermore, this analyser measures S11 reflection and S21 transmission across an ultra-wide 50kHz to 6.3GHz range, and derives time domain reflectometry and distance to fault results from the same sweep. A built-in source attenuator holds the output at a controlled level, which makes this analyser well-suited to characterising active devices such as amplifiers and mixers. A larger 7-inch capacitive display makes measurements easier to read. Each sweep can be viewed as a Smith chart, log-magnitude, SWR or phase trace, whichever format suits the measurement. The integrated 7800mAh battery powers this analyser through long sessions in the field.
For deeper analysis, this analyser can be connected to a PC or an Android phone over USB-C, where compatible NanoVNA software records and post-processes each sweep. The N-type ports accept the supplied calibration standards directly, and additional N-type test cables and standards extend this analyser to other connector types. Contact us for advice on the right calibration standards and cabling for a given measurement setup.
Model overview
| Model | LiteVNA 62 | LiteVNA 64 | LiteVNA 67 |
|---|---|---|---|
| Battery | 1300 mAh | 2000 mAh | 7800 mAh |
| Connectors | SMA | SMA | N-type |
| Dynamic range | >70 dB (50 kHz - 3 GHz) >50 dB (3 - 6.3 GHz) |
>90 dB (50 kHz - 3 GHz) >70 dB (3 - 6.3 GHz) |
>100 dB (50 kHz - 3 GHz) >80 dB (3 - 6.3 GHz) |
| Source attenuator | No |
No |
Yes |
| Price |
Specifications
| Bandwidth | 50 kHz - 6.3 GHz |
| Ports | 2 |
| Noise floor | <-50 dB (50 kHz - 3 GHz) <-40 dB (3 - 6.3 GHz) |
| Frequency stability | <0.5 ppm |
| S11 (return loss) | >50 dB (50 kHz - 3 GHz) >40 dB (3 - 6.3 GHz) |
| Max. input level | +10 dBm (RF), 10 VDC max |
| Sweep points | 21-1001 (device), 1-65535 (USB) |
| Interfaces | USB-C |
| Display | 7-inch capacitive touchscreen |
| Weight | 1.7 kg |
Accessories
The LiteVNA 67 comes with the following accessories:
- N-type OPEN calibration standard
- N-type SHORT calibration standard
- N-type LOAD calibration standard
- N-type female-female adapter
- Portable storage case
- RF test cable
- USB-C cable
Pros and cons
- 7-inch capacitive touchscreen
- N-type connectors
- Built-in source attenuator
- Complete kit with calibration kit and storage case
- Measures S11 and S21 only
- N-type ports need an adapter for SMA devices
Downloads
| LiteVNA user manual |  (1.08 MB) | Download |
