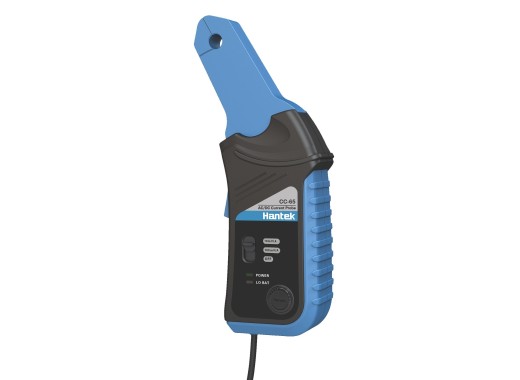

The Hantek CC-65 current probe has a current range of 20mA - 65A and a frequency range of DC - 20kHz. It has a sliding-button that allows for 2 different input ranges of 10mV/A, and 100mV/A. It also has a clamp design, which is convenient for testing the current without disconnecting the circuit. Furthermore, the clamp has a maximum jaw size of 9mm.
The current probe comes with a BNC output cable, which can be used to connect it to an oscilloscope.
Specifications
| Bandwidth | DC - 20 kHz
|
| Current range | 20 mA - 65 A
|
| Maximum DC current | 20 A (100 mV / A), 65 A (10 mV / A)
|
| Maximum AC current | 15 A (100 mV / A), 65 A (10 mV / A)
|
| Battery type | 9 V DC
|
| Maximum jaw size | 9 mm
|
| Dimensions | 195 x 70 x 33 mm
|
Pros and cons
- Widely used in vehicle diagnostics
- Low bandwidth
- Buttons do not feel very good
