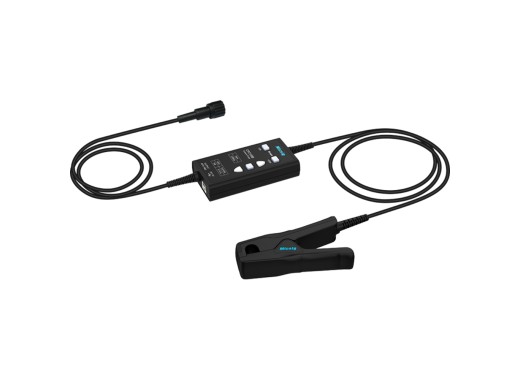

The Micsig CP2100A current probe can measure both DC and AC and has a small and compact design. The probe uses a standard BNC interface for oscilloscopes or a multi-connector for adapters. The maximum current that can be measured is 100Apk and the bandwidth is DC ~ 800KHz. The probe has two optional ranges of 10A and 100A. Also, the probe has an automatic and manual zero adjustment and a USB power supply.
From the Micsig CP2100 series, we also offer the Micsig CP2100B. This current probe has a bandwidth of DC ~ 2.5MHz.
Bandwidth | DC ~ 800 KHz | Rise time | < 583 ns | Range | 50 mA ~ 10 Apk (10A) 1A ~ 100 Apk (100A) |
Signal delay | < 150 ns (10A) < 200 ns (100A) |
Overload indication | Yes |
Power supply | 5 V | Dimensions (without package) | 110 x 60 x 25 mm | Weight (without package) | 290 grams |
The Micsig CP2100A current probe comes with the following accessories:
User manual Micsig CP2100 |
(4.48 MB) | Download |
Micsig CP2100 series datasheet |
(3.2 MB) | Download |
