Hakko FR-850 hot air soldering station
Details
The Hakko FR-850 hot air soldering station has a temperature range of 50℃ to 600℃ and a fan capable of airflow up to 5L/min. The display allows for the precise setting of the temperature and airflow of the station. It also features auto-shutoff and auto-cooling features when the handpiece is placed on the stand. Moreover, the FR-850 can be programmed with up to five frequently used presets and also has a preset chain function for fast and automatic configuration. All of these features make the FR-850 comparable to more expensive hot air soldering stations, making it good value for money.
Automatic calibration can be completed by transmitting the measurement data from the Hakko FG-100B or FG-101B soldering tip thermometer. The FR-850 can be connected to a PC, which can be used to operate the device. It can also be used to monitor and record data from the soldering station in real-time.
Note: No nozzles are included. It is recommended to also purchase the NA01 series nozzles.
Specifications
| Power | 112 W (7 W station + 105 W handpiece) |
| Temperature range | 50 ℃ - 600 ℃ |
| Air flow rate | 1.5 L/min - 5 L/min |
| Interface | USB-C |
| ESD safe | Yes |
| Automatic standby | Yes |
| Compressor type | Fan |
| Dimensions | 98 x 140 x 165 mm (station) |
| Weight | 1.87 kg |
Accessories

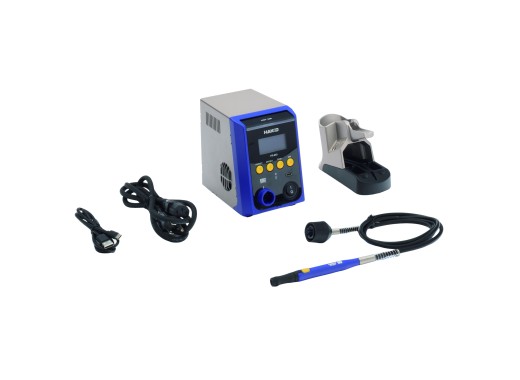

The Hakko FR-850 comes with:
- Station with handpiece (FR-8501)
- Iron holder (FH-225)
- USB cable
- Power cord
Pros and cons
- Ideal for precision work
- Can be controlled with PC software
- Auto-cooling and auto-shutoff functions
- Compact and lightweight
- Good value for money
- Nozzles are not included
Downloads
| Hakko FR-850 datasheet |  (9.99 MB) | Download |
| Hakko FR-850 instruction manual | (3.19 MB) | Download |
