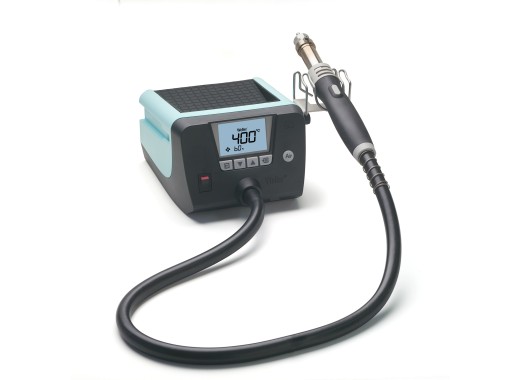

Weller WTHA 1 hot air soldering station
Details
The Weller WTHA 1 is a powerful single-channel hot-air soldering station. The station delivers a total of 900W of power delivering 50L of hot air per minute, which enables the station to achieve a heat of 600°C. Additionally, the station has an LCD with a dimmable backlight and a bar graph that visualises the power output from the station. This device has 5 pre-set profiles, in which air volume, temperature and time settings can be defined. The temperature, profiles and a bar graph of the output power can be accessed through the easy-to-use menu with the buttons on the station. Finally, the station is designed in such a manner that it is stackable with other Weller stations of the WT series, this means that you can save space on your workbench. Moreover, the cover of the housing is also liftable, meaning you can use the housing as a storage space.
Specifications
| Power | 900 W |
| Temperature range |
100 °C - 600 °C |
| Temperature accuracy |
30 °C |
| Air flow control |
1-50 standard L/min |
| ESD safe |
Yes
|
| Automatic standby |
Yes, adjustable
|
| Dimensions | 212 x 172 x 122 mm |
| Weight | 1.95 kg |
Accessories
The WTHA 1 comes by default with:
- Hot air tool holder
- Hot air tool
- TNR 40 nozzle
- Power cord
Downloads
| WTHA1 datasheet |  (1.02 MB) | Download |
| WTHA1 manual | (3.66 MB) | Download |
