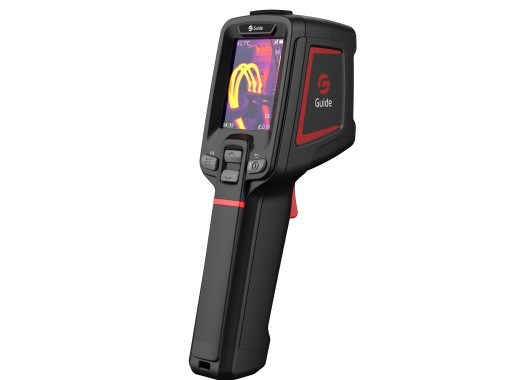

Guide IR E2S thermal imaging camera
Details
Tip:
The Guide IR E2S is the successor to the Guide E2. Although the exterior looks the same, the thermal imaging camera has some considerable upgrades, most notably the new ApexVision S1 system. This new system consists of a new IR detector, image processing platform and algorithm. Resulting in a new sensitivity of 15mK. The performance and quality of this thermal imaging camera can easily be compared with well-known brands like Flir.
The excellent price-to-quality ratio stands out in particular. Using both the superb IR resolution of 256x192 combined with the information obtained from its visible light camera, this E2S delivers crisp, clear thermal images and videos. Besides the excellent sensor, this thermal imaging camera offers other important features: real-time AI-driven image optimisation, enhancing noise reduction, auto hot & cold spot tracking, real-time super-resolution (512x384), alarm function, flashlight, and a laser. Furthermore, the thermal camera has 16GB of built-in memory.
It can be mounted on a tripod because it features a 1/4 inch mount connector on the bottom of the handle. It is possible to view the IR video live over Wi-Fi with the Thermography app.
A camera bag to safely store the E2S thermal imaging camera can be found on the following page.
For tutorials on the Thermotools software, the Guide YouTube account, seen here, contains many videos on how to use the software.
Model overview
| Model | E2S | E2+S | E3S | E4S |
|---|---|---|---|---|
| Temperature range | -20 – 550 °C | -20 – 550 °C | -20 – 550 °C | -20 – 650 °C |
| IR resolution | 256 x 192 (49152 pixels) | 256 x 192 (49152 pixels) | 256 x 192 (49152 pixels) | 384 x 288 (110592 pixels) |
| FOV | 56° x 42° | 25° x 19° | 56° x 42° | 38° x 28° |
| Auto focus | No | Yes | No | No |
| Price |
Specifications
| Accuracy | ±2 °C or ±2% (whichever is greater) |
| NETD | 15 mK |
| Min. focal distance | 10 cm |
| Focal length | 3.2 mm |
| Frame rate | 25 Hz |
| Spot measurement | Centre, 3 areas (max/min), auto spot tracking, alarm |
| Detector type | VOx, 7.5 to 14 μm |
| Display | 2.4" |
| Battery | Up to 11 hours |
| Dimensions | 194 × 61.5 × 76 mm |
| Weight | 375 g |
Optionally, you can purchase the which makes it possible to focus on small parts, like electronic boards.
Accessories
The E2S includes
- Charger
- USB-A to USB-C cable
- Wrist strap
Pros and cons
- High sensitivity of 15mK
- Cannot be connected to Mac devices
Downloads
| Guide IR E2(+)S user manual |  (1.44 MB) | Download |
| Quick operation guide E2(+)S series | (1.38 MB) | Download |
| ThermoTools user manual | (4.5 MB) | Download |
