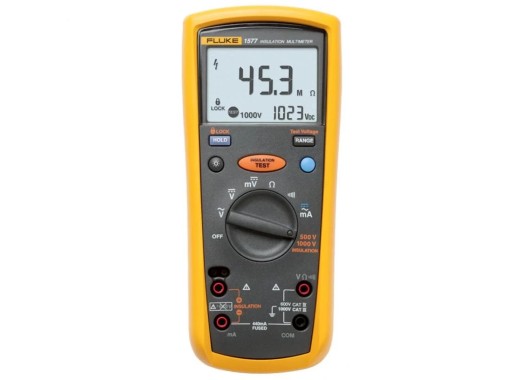

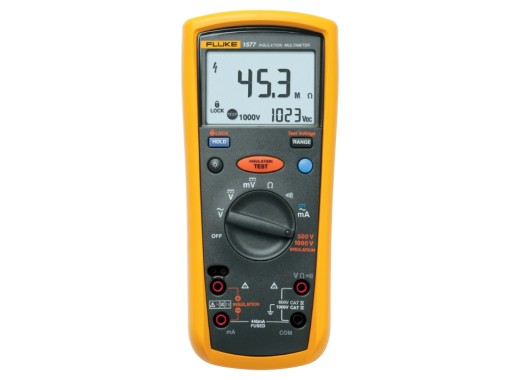

Fluke 1577 insulation tester
Details
The Fluke 1577 is a True-RMS insulation multimeter, capable of testing voltage up to 1000V and insulation resistance up to 600MΩ. The meter features useful features such as a large display with backlight, an automatic power-off function to save battery, and a live circuit detection for added user protection. To simplify work in difficult and crowded places, this meter includes a remote measuring probe, and is compatible with the optional TPAK magnetic hanger. These features make the Fluke 1577 ideal for technicians and engineers who are looking for an insulation resistance meter and need simplicity, accuracy, and reliability. If you are looking for an all-in-one insulation multimeter, consider the Fluke 1587 FC, which is the upgraded version of this multimeter and provides more functionality at a slightly higher cost.
Models
| Model | Fluke 1577 | Fluke 1587 FC |
|---|---|---|
| Test voltages | 500 V / 1,000 V | 50 V / 100 V / 250 V / 500 V / 1,000 V |
| Insulation test range | 0.01 MΩ - 600 MΩ | 0.01 MΩ - 2GΩ |
| Test temperature | No | Yes |
| Test capacitance | No | Yes |
| Test frequency | No | Yes |
| Fluke Connect compatible | No | Yes |
| Price |
Specifications
| Display resolution | 6000 counts |
| Max. AC voltage | 1000 V |
| Max. DC voltage | 1000 V |
| Max. AC current | 400 mA |
| Max. DC current | 400 mA |
| Max. resistance | 50 MΩ |
| Other functions | Fuse protection, auto power off, live circuit protection |
| Power supply | 4x AA battery |
| True-RMS | Yes |
| Display | Backlit LCD |
| Dimensions | 320 x 180 x 300 mm |
| Weight | 550 g |
Accessories
The Fluke 1577 clamp meter comes with:- Remote probe
- Test leads
- Alligator clips
- 4x AA batteries
- Hard carrying case
Downloads
| Fluke 1577/1587 user manual |  (2.33 MB) | Download |
| Fluke 1577/1587 datasheet | (1.49 MB) | Download |
