Hioki IR4059 insulation resistance tester
Details

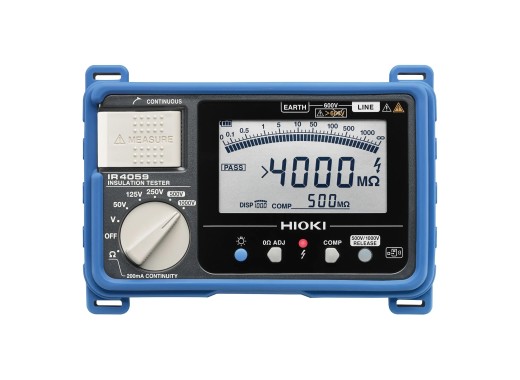

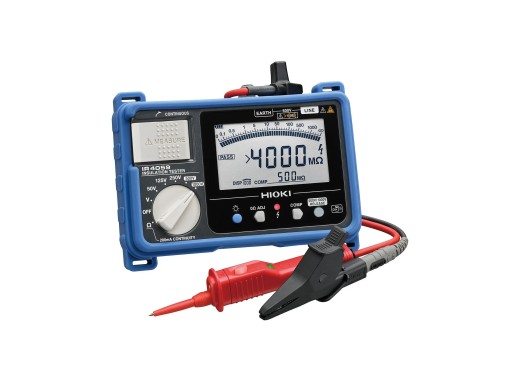

The Hioki IR4059 is a 5-range, 50V to 1000V digital insulation resistance tester. The tester can measure the insulation resistance up to 4000MΩ and has a pass/fail feature that compares the measured value against a user-set reference to provide a quick indication of the result. Furthermore, there is a low-resistance mode for accurately measuring resistances under 1KΩ. The IR4059 is the upgraded version of the IR4056, providing features such as a 1-min value display, bar graph display and a faster comparator time.
The optional Z3210 Bluetooth adapter allows exporting data to an Excel file or to Hikoi's app, where measured data can be overlaid on an annotated image. The IR4059 also now comes with a protective silicone case, a test lead with remote switch, and a pair of standard test leads with pins/alligator clips.
Model overview
| Model | IR4053-10 | IR4056-20 | IR4059 |
|---|---|---|---|
| DC voltage measurement | 1000 V | 600 V | 600 V |
| Low resistance measurement | No |
Yes |
Yes |
| 1-min value display | No |
No |
Yes |
| Comparator response time | 0.8 s | 0.8 s | 0.3 s |
| Bar graph display | No |
No |
Yes |
| PV measurement | Yes |
No |
No |
| Bluetooth | No |
No |
|
| Price |
Specifications
| Insulation measurement range | |
| Test voltage | 50V / 125V / 250V / 500V / 1000V (0~20%) |
| Insulation resistance | 0.001 MΩ - 4000 MΩ (±3%+5) |
| Other measurements | |
| Max. DC voltage | 600.0 V (±2%+5) |
| Max. AC voltage | 600.0 V (±2%+5) |
| Other functions | Continuity test, high voltage prevention, LCD backlight |
| Power supply | 4x AA batteries |
| Dimensions | 160 x 98 x 46 mm |
| Weight | 536 g |
Accessories
The Hioki IR4059 comes with:
- 1x Test lead set
- 1x Alligator clip set
- 1x Test pin set
- 1x Test lead with button set
- 4x AA Batteries
- 1x Silicone case
- 1x Neck strap
Pros and cons
- 0.3s comparator response time
- Test lead with remote switch included
Downloads
| Hioki IR4059 user manual |  (5.2 MB) | Download |
| Hioki insulation testers datasheet | (5.97 MB) | Download |
