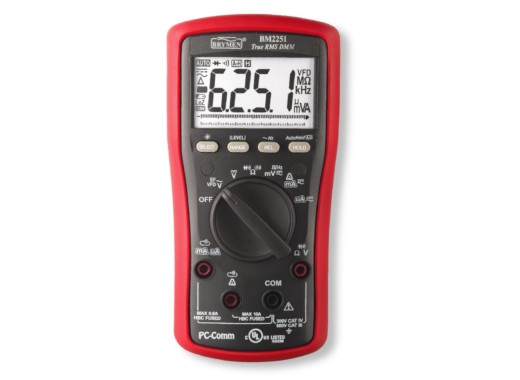

Brymen BM2251 multimeter
Details
The Brymen BM2251 multimeter is a professional True-RMS multimeter packed with the essential features for electrical and industrial applications. Key features include Beep-Jack for plug-in protection, AutoHold, VFD AC voltage with a low-pass filter for noisy circuits and motor drives (up to 600V), and additional features. The True-RMS functionality helps measure non-sinusoidal signals accurately, and combined with a CAT III 600V & CAT IV 300V rating, the meter is very robust.
The multimeter measures DC/AC voltage and current signals, frequency and resistance, and can also test diodes, and perform NCV tests. It has 1100V AC / 660V DC overload protection and 6kV transient protection, as well as crest peak capture and Max/Min/Avg recording for transient signals. The meter can be connected to a PC using the optional USB interface kit, allowing users to store measurement data on a computer.
The Brymen BM2251 is a more economical multimeter with fewer functions. For users who need additional features such as AutoV automatic AC/DC selection, the LoZ ghost voltage buster, and capacitance and temperature measurement, the Brymen BM2257 is the more advanced option.
Specifications
| Display resolution | 6000 counts, 3 5/6 digits | ||||||||||||||||||||||||
| Range and accuracies | |||||||||||||||||||||||||
| |||||||||||||||||||||||||
| Measurement category | 600 V CAT III 300 V CAT IV | ||||||||||||||||||||||||
| Input impedance | 10 MΩ, 54 pF | ||||||||||||||||||||||||
| Continuity check | 30 Ω to 480 Ω | ||||||||||||||||||||||||
| Other features | AutoHold; VFD-ACV & VFD-Hz; Hi/Lo EF detection (NCV & single pole); BeepLitTM Continuity; BeepPassTM diode test; Record MAX, MIN, & AVG readings; Crest (Instantaneous Peak hold) MAX & MIN readings; Relative Zero mode; Data Hold; BeepJack™ audible & visible input warning | ||||||||||||||||||||||||
| Power supply | 2x 1.5 V AAA alkaline battery | ||||||||||||||||||||||||
| True-RMS | |||||||||||||||||||||||||
| Data logging | |||||||||||||||||||||||||
| Display | LCD display | ||||||||||||||||||||||||
| Dimensions | 161 x 80 x 50 mm | ||||||||||||||||||||||||
| Weight | 334 g | ||||||||||||||||||||||||
Accessories
The Brymen BM2251 multimeter comes with:
- 1x Test lead pair
Pros and cons
- Low impedance mode
- Crest Peak capture
- No AC/DC selection
- No capacitance & temperature measurement
Downloads
| Brymen BM2250 series datasheet |  (24.92 MB) | Download |
| Brymen BM2250 series user manual | (3.36 MB) | Download |
