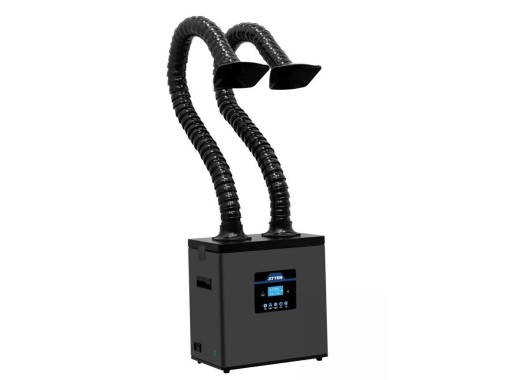

The Atten ST-1202D fume extractor is suitable for applications where harmful fumes are produced, such as soldering or laser cutting. This fume extractor features a durable metal frame, two inlets and a three-filter design, comprising a pre-filter, a medium-efficiency filter, and a main filter, all of which can be replaced separately. This design reaches up to 99.97% efficiency. Additionally, the fume extractor has a filter blockage alarm. The fume extractor features flexible tubes, allowing you to position them easily in any necessary way. Furthermore, the device has a large LCD screen with control buttons. Finally, the ST-1202D has a built-in RS-485 interface, allowing the fume extractor to be connected to a computer, soldering station and other devices for synchronised commands.
This fume extractor is not ESD safe. For an ESD safe fume extractor, you can look at the FE1B ESD fume extractor.
Model overview
| Model |
ST-1101D
|
ST-1202D
|
| Inlets |
1 |
2 |
| Power |
160 W |
180 W |
| Airflow |
240 m3/h |
150 m3/h (per inlet) |
| Price |
420.17
€420.17
Excl. VAT
|
487.36
€487.36
Excl. VAT
|
Specifications
| Speed control | Buttons |
Noise level
| 45 - 60 dB |
| Filters | Primary filter, medium efficiency filter, main filter |
| Filter efficiency | 99.97% of particles >0.3 μm |
| ESD safe | No |
| Tube length | 1.3 m |
| Dimensions | 465 x 250 x 480 mm |
| Weight | 18.2 kg |
Filters
Accessories
- Power cable
- 2x Flexi tube
- 2x Silicone funnel nozzle
- 4x Primary filter
- 4x Roller
- 4x Machine foot pads
- PVC duct pipe
Pros and cons
- RS-485 interface
- Large LCD
Downloads
(2.02 MB)
