Andonstar AD249S-M Plus microscope
Details

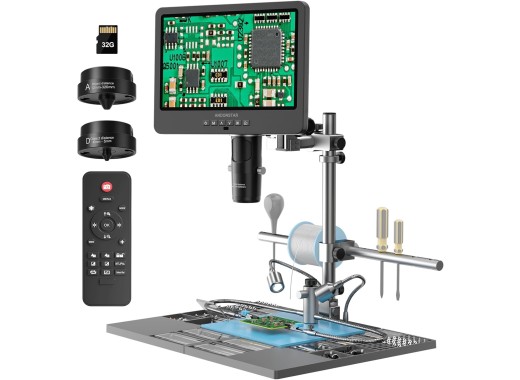

The Andostar AD249S-M Plus is a complete digital microscope kit with 3 magnification lenses and a 10.1" display. The included lenses feature magnification ratios of 18-720x, 1800-2040x, and 60-240x. These make this a versatile microscope for inspecting pcb's, coins, and organic materials. For observing cells, bacteria, and other microscopic objects, this kit comes with microscope slides and a slide holder. Images can be viewed on the 10 inch monitor, displayed on an external screen using HDMI, or the microscope can be connected to a PC to display the image and control it's settings. Pictures/videos can be taken directly on the microscope with a maximum resolution of 2160p (limited to 24fps), or at 120fps (limited to 720p). The AD249S can also be controlled with the included IR remote which let's you control settings such as zooming in, zooming out, changing the LED brightness, taking photos and videos, and adjusting video settings.
Model overview
| Model | AD249S-M Plus | AD249S Max-ES |
|---|---|---|
| Interfaces | USB, HDMI | USB, HDMI |
| Stand size | 40 x 30 x 43 cm | 46 x 37 x 47 cm |
| Display | 10.1" | 10.1" |
| Endoscope included | No |
Yes |
| Price |
Specifications
| Type microscope | Video and photo |
| Video format | MP4 |
| Max. video resolution | 2160p |
| Max. frame rate | 120 fps |
| Photo format | JPG |
| Light source | 2 LED-spots |
| Lens magnification | Lens A: 18-720x Lens D: 1800-2040x Lens L: 60-240x |
| Lens focus range | Lens A: 12-320 mm Lens D: 4-5 mm Lens L: 90-300 mm |
| Display size | 10" |
| Power source | 5V DC |
Accessories
The Andonstar AD249S-M Plus microscope comes with the following accessories:
- 3 lenses (A,D,L)
- Dimmer cable
- HDMI cable
- USB cable
- IR remote
- Tweezer
- Slides kit
Pros and cons
- 3 lenses
- Up to 2040x magnification
- Microscope body is made out of plastic
Downloads
| Andostar 249S Users manual |  (2.18 MB) | Download |
