Zeroplus LAP-C DSO module
Promotion! This product is temporarily reduced in price. Offer valid while stocks last!
Details

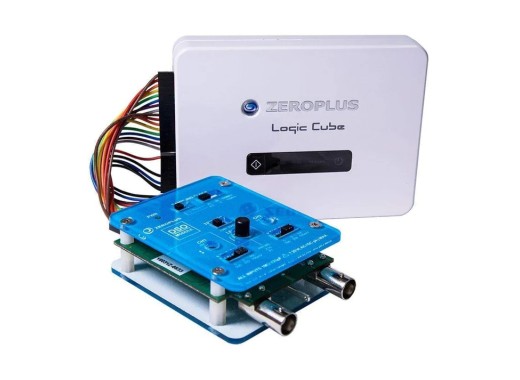

The Zeroplus LAP-C DSO module adds dual-channel oscilloscope functionality to any compatible ZeroPlus LAP-C logic analyser. It transforms the LAP-C into a mixed-signal oscilloscope (MSO), enabling simultaneous capture of analogue waveforms and digital logic signals through a single software interface. The DSO module has a bandwidth of 20MHz.
With sampling rates up to 100MHz and 19 automatic waveform measurements, the DSO module is a practical and affordable way to extend an existing LAP-C setup for basic analogue debugging without requiring a separate oscilloscope.
Compatibility
For each model, these are the maximum number of DSO channels and LA that can be provided.
| MSO Mode | LAP-C 16000 series LAP-C Pro 16xxx |
LAP-C 32000 series LAP-C Pro 32xxx series |
|---|---|---|
| Single channel | DSO 1 ch + LA 7 ch | DSO 1 ch + LA 23 ch |
| Dual channel | DSO 2 ch | DSO 2 ch + LA 16 ch |
Specifications
| Bandwidth | 20 MHz |
| Channels | 2 |
| Sample rate | 2.5 MHz - 100 MHz (6 steps) |
| Memory depth | 2k / 16k / 32k |
| Vertical scale (probe x10) | 1 V/div, 2 V/div, 5 V/div |
| Vertical scale (probe x1) | 100 mV/div, 200 mV/div, 500 mV/div |
| Trigger modes | Auto, normal, single |
| Trigger conditions | Rising edge, falling edge, both edges, high level, low level, any signal |
| Automatic measurements | 19 (Vmax, Vmin, Vpp, Vrms, Frequency, Period, Duty cycle, Rise/Fall time, etc.) |
| Cursor measurements | Time difference, voltage difference |
| Probe compensation | 2 kHz, 3.3 Vp-p square wave |
| Interface | A0-A7, B0-B7, Ext CLK, VDD, GND (connects to LAP-C) |
| Dimensions | 145 x 70 x 25 mm |
| Weight | 200 g |
Accessories
The Zeroplus LAP-C DSO module comes by default with:
- Oscilloscope probe
- Adjustment tool
- Single channel cable
- Dual channel cable
- Identification rings
- Positioning sleeves
Pros and cons
- 19 automatic waveform measurements
