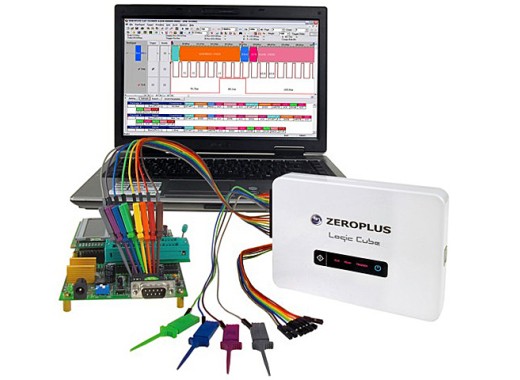

Zeroplus LAP-C 16000 series logic analyzer

With this USB2.0 logic analyser you can quickly and clearly visualize up to 16 digital signals. You can of course view raw data, but the support of many known protocols makes analyzing bus signals child's play.

Thanks to the USB2.0 connection, no external power adapter is required, and fast data transfer is possible. The patented data compression ensures that up to 255x more data can be recorded, so less memory is needed.

Software

A very extensive software package can be downloaded here. The Zeroplus software allows you to decode the protocols of the signals you are viewing. For example, you can read CAN, I2C or UART messages directly in the Zeroplus software. As many as 120 protocols are directly supported. Do you want more information about decoding SPI and/or CAN signals? Then see the videos below.

In the table at the bottom of the page an overview of a number of supported protocols can be found.

Model overview

The differences between the models in the LAP-C series are mainly in the amount of memory, the supported bandwidth and the sample rate.

Accessories

All logic analysers in the LAP-C 16000 series are supplied with:

• USB 2.0 cable
• Cables 25 cm (2x 8 channel, 1x 2 channel, 1x 1 channel)
• English manual

Overview protocols

Below is an overview of the protocols that come standard with every LAP-C logic analyser. You can download the complete software set here.
