Owon XDS3104E oscilloscope
Details

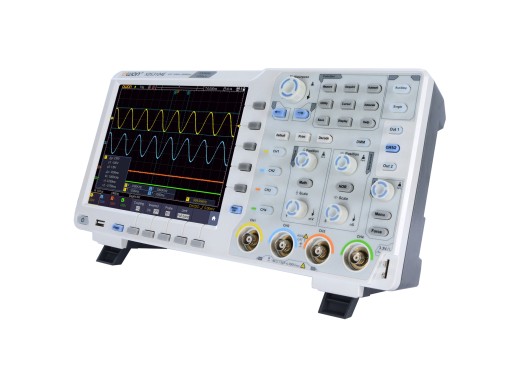

The Owon XDS3104E oscilloscope is the 100MHz version in the XDS3004E series of oscilloscopes. The series has been expanded with two good entry level 4 channel oscilloscopes with a very good price/quality ratio. These oscilloscopes are an interesting alternative to the 4 channel 1000 series from Rigol and GW instek, and are also priced quite similarly. The oscilloscopes offer a larger screen, higher bandwidth and a higher waveform capture rate than for example the DS1054Z. The oscilloscopes are available with 4 channels and at 60 or 100 MHz and feature a touch LCD.
The oscilloscopes offer low background noise, and a relatively large memory for samples. To process data it is possible to connect via USB (host and device) or LAN to various devices. Furthermore, the oscilloscopes support LabVIEW and SCPI.
Models
The difference between the 2 models is only the bandwidth.
| Model | XDS3064E | XDS3104E |
| Bandwidth | 60 MHz | 100 MHz |
| Price |
Specifications
| Number of channels | 4 |
| Sample rate | 1 GS/s |
| Decoding options | IIC, SPI, UART/RS232, CAN |
| Vertical resolution | 8 bit |
| Memory size | 40 Mpts |
| Waveform capture rate | 45,000 wfm/s |
| Interpolation | sin(x)/x, x |
| RF Impedance | 50 Ω |
| Probe support | 0.001X - 1000X |
| Measured noise value | 0.4 - 0.6 mVpp (at 1ms,1mV/div, record length: 10K) |
| Display | 8" LCD 800 x 600 pixels Touchscreen |
| Connectivity | USB(host/device), PictBridge, Trig out(P/F), LAN, VGA |
| Dimensions | 340 x 177 x 90 mm |
Options
The following options are included free with the XDS3104E:
- VGA
- LAN
- Touchscreen LCD
- I2C, SPI, RS232, CAN
The composition of the options cannot be changed.
Accessories
The oscilloscopes are supplied with:
- Power cord
- CD-ROM with software
- User manual
- USB
- Probes (1 per channel)
Downloads
| XDS3004 Datasheet |  (1.59 MB) | Download |
| XDS3004 Manual | (3.53 MB) | Download |
