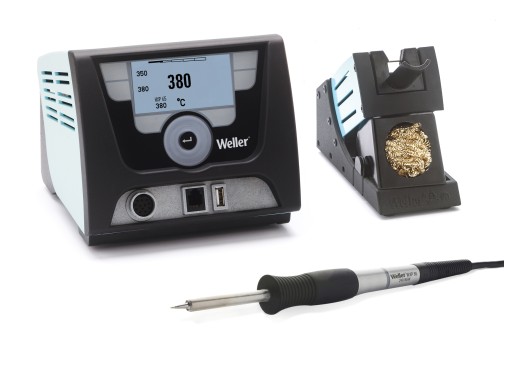

Weller WX 1012 soldering station
Details
The Weller WX 1012 soldering station is a multifunctional station that has a power of 200W and uses passive soldering tips to regulate the temperature. The temperature of the soldering station ranges from 100°C - 550°C and the tips are able to achieve a temperature of 350°C within 7 seconds. One of the advantages of this product is its compatibility with all the active and passive Weller WX series soldering irons, and tweezers; feel free to contact us if you want more information. Other features of the WX 1012 are its touch screen display, data logging capabilities, RS232 programmability and standby-mode that reduces energy consumption while the station is not in use.
Specifications
| Power | 200 W |
| Temperature range | 100 °C - 550 °C |
| Heating time | ~ 7 sec (from 50 °C to 350 °C) |
| Tip system | Passive |
| Interface | 1x USB, 2x RS232 |
| ESD safe | Yes |
| Automatic standby | Yes |
| Dimensions | 170 x 151 x 130 mm |
| Weight | 3.2 kg |
Accessories
The WX 1012 comes by default with:
- WDH 100 soldering iron holder
- WXP 65 soldering iron
- XNT A soldering tip chisel (1.6 x 0.4 mm)
- Power cord
Pros and cons
- Has a touch screen display
- Compatible with all the WX series soldering irons and tweezers
- Possible to log data with a usb-interface
- Possible to combine with the Weller Zero Smog fume extractor
- High price
- Comes with a passive soldering iron
Downloads
| Weller WX series user manual |  (5.94 MB) | Download |
| Weller WX1 interface manual | (2.79 MB) | Download |
