UNI-T UTS3032T+ spectrum analyser
Details

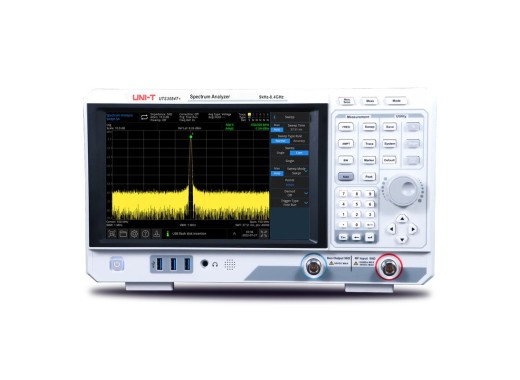

Note: The images are of the UNI-T UTS3084T+, however the models are comparable.
The UNI-T UTS3032T+ is a competitively priced 3.2GHz spectrum analyser part of the UTS3000T+ series. This device is well suited for weak signal tests, which are easily affected by noise, as the UTS3000T+ series features a great sensitivity and a DANL as low as -161dBm, which is low enough to be unnoticeable in typical use. The UTS3032T+ offers 10001 sweep points, which makes it easier to detect difficult signals. Additionally, this spectrum analyser features a tracking generator.
A key selling point of the UTS3000+ series is the price. The series offers great specifications for the price, matching or coming close to much pricier spectrum analysers. However, this series excludes some features which you might find on other analysers, such as a web server.
The spectrum analysers can be connected to a computer through USB and LAN interfaces and support the SCPI programming protocol. The device features a 10.1" touchscreen LCD with intuitive gesture controls designed to simplify operations. The UTS3000T+ series also supports the Tekbox EMCview software, designed for the user-friendly execution of EMC pre-compliance testing of products. Finally, the UTS3032T+ may also be easily upgraded with other software options.
The default 3-year warranty can be extended to 5 years by registering your instrument.
Model overview
| Model | UTS3032T+ | UTS3036T+ |
|---|---|---|
| Bandwidth | 9 kHz - 3.2 GHz | 9 kHz - 3.6 GHz |
| Tracking generator | 10 MHz - 3.2 GHz | 10 MHz - 3.6 GHz |
| RBW | 1 Hz - 1 MHz | 1 Hz - 3 MHz |
| Price |
Specifications
| DANL | -161 dBm/Hz |
| Amplitude accuracy | < 0.7 dB |
| Phase noise | < - 98 dB/Hz |
| Interfaces | USB host/device, LAN |
| Display | 10.1" TFT LCD (1280x800) |
| Dimensions | 378 x 218 x 120 mm |
| Weight | 4.55 kg |
Accessories
- USB cable
- Power cord
Options
| Analysis option (software) | UTS1000-EMI | |
| Analog demodulation analysis option (software) | UTS1000-AMA | |
| Advanced measurement kit option (software) | UTS1000-AMK |
Pros and cons
- Good price for performance
- Included tracking generator
- Only 1 MHz RBW
Downloads
| UTS3000T+ series user manual |  (4.91 MB) | Download |
| UTS3032T+ data sheet | (1.43 MB) | Download |
