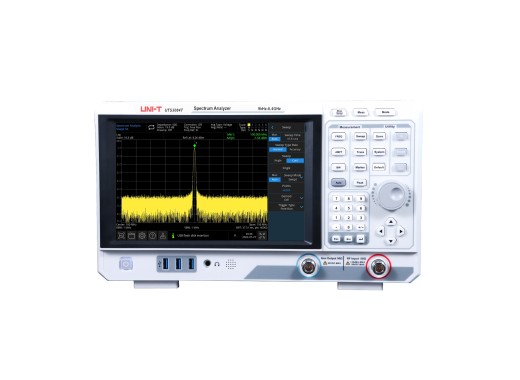

UNI-T UTS3084T+ spectrum analyser
Details
The UNI-T UTS3084T is a spectrum analyser in the UTS3000T series with a bandwidth of max. 8,4GHz and a tracking generator. Unique to this product is the support for tracking source output functions, such as changing the amplitude, deviation, normalization and reference level value of the signal.
The very low displayed average noise level (DANL) of ≤-161dBm, combined with the high frequency resolution of 40.001 sweep points, allows for an excellent sensitivity to weak incoming test signals. The product can display the scan data after using a calculation method according to one of the four trace types. Either clear/write, averaging, min. hold or max. hold can be selected as trace. To these traces also one of the five optional detection modes can be applied. Either sampling, peak, negative peak, normal detection or average can be selected as detection mode.
The 10.1" display with HD graphics supports multiple gesture operations such as dragging, expanding, zooming and selecting. The output of the multi-touch screen can also be connected to other display devices through the HDMI connection. The detachable dust filter, when cleaned regularly, ensures reliability of the device over a long period of time.
The default 3-year warranty can be extended to 5 years by registering your instrument.
Specifications
| Bandwidth | 9kHz - 8.4GHz |
| RBW | 1 Hz |
| DANL | -161 dBm/Hz |
| Amplitude accuracy | < 0.7 dB |
| Phase noise | < -98 dB/Hz |
| Tracking generator | Yes |
| Interfaces | HDMI 1.4, USB-A host, USB-B device, LAN, SCPI protocol supported |
| Display | 10.1" LCD touchscreen (1280 x 800) |
| Dimensions | 378 x 218 x 120 mm |
| Weight | 4.55 kg |
Options
| Analysis option (software) | UTS3000-EMI | |
| Analog demodulation analysis option (software) | UTS3000-AMA | |
| Advanced measurement kit option (software) | UTS3000-AMK | |
| Tekbox EMCview (software) | EMCview | |
| Tekbox EMCview Pro (software) | EMCview Pro |
Accessories
The UTS3084T comes by default with:- Power cord
- USB cable (UT-D14)
Pros and cons
- Low DANL
- High signal sensitivity
- High frequency resolution
- Vector signal analysis not integrated
