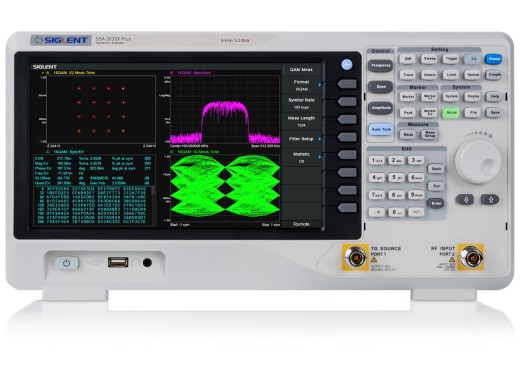

The Siglent SSA3032X-PLUS spectrum analyser is the successor to the popular SSA3032X. The PLUS series is in many ways similar to its predecessor, only the PLUS series has a touchscreen display and tracking generator. There are also several options available for the PLUS series. The spectrum analyser has a bandwidth of 9 kHz to 3.2 GHz with a very small noise. The resolution of the measurement can be set to only 10 Hz, which makes it possible to measure very precisely.
The low noise is a unique property of this spectrum analyser. This limits the measurement error on smaller signals in particular. The given noise figure is only -161dBm/Hz. This is low enough to be unnoticeable in typical use. The standard Pre-amplifier allows for measurements to small signals, but can be disabled for a one-to-one image of the signal.
With a bandwidth of up to 3.2 GHz, common wireless communication frequencies can be easily measured. WiFi and Bluetooth operate on 2.4 GHz, for example, but also GSM, which starts at 380 MHz and runs up to 1.9 GHz is easy to measure with these meters. A handy optional feature for measuring radio signals is the ability to easily measure Adjacent Channel Power Ratio (ACPR), a requirement for radio communication, because the available bandwidths may not overlap.
The large 10.1" WVGA display with 1024 by 600 pixels offers ample space for measurement data. The software supports up to 4 cursors simultaneously, which allows for easy data analysis.
Are you looking for an attenuator with various connectors for your spectrum analyser? Then this utility kit from Siglent is suitable for you. See here for more information.
Siglent offers several series of spectrum analysers, of which you can find a brief overview below.
Series | SSA3000X | SSA3000X-PLUS | SSA3000X-R | SVA1000X |
---|---|---|---|---|
Models | SSA3021X SSA3032X |
SSA3015X-PLUS SSA3021X-PLUS SSA3032X-PLUS SSA3075X-PLUS |
SSA3050X-R SSA3032X-R SSA3075X-R |
SVA1015X SVA1032X SVA1075X |
Max. bandwidth | 3.2 GHz | 7.5 GHz | 7.5 GHz | 7.5 GHz |
VNA | No |
No |
Yes, and DTF |
Yes |
Real-time | No |
No |
Yes |
No |
Options | AMK, EMI, refl | AMK, EMI, refl, AMA, DMA | AMK, EMI, AMA, DMA, RT40 | AMK, EMI, AMA, DMA, DTF |
Connectivity | - | Touchscreen, Mouse & keyboard, Webserver | Touchscreen, Mouse & keyboard, Webserver | Touchscreen, Mouse & keyboard, Webserver |
Here you will find an overview of the differences between the models in the Siglent SSA3000X-PLUS series. The main differences are bandwidth and noise.
Model | SSA3015X-PLUS | SSA3021X-PLUS | SSA3032X-PLUS | SSA3075X-PLUS |
---|---|---|---|---|
Bandwidth | 9 kHz - 1.5 GHz | 9 kHz - 2.1 GHz | 9 kHz - 3.2 GHz | 9 kHz - 7.5 GHz |
Tracking generator | 5 MHz - 1.5 GHz | 100 kHz - 2.1 GHz | 100 kHz - 3.2 GHz | 100 kHz - 7.5 GHz |
RBW | 1 Hz - 1 MHz | 1 Hz - 1 MHz | 1 Hz - 1 MHz | 1 Hz - 3 MHz |
DANL | - 156 dBm/Hz | - 161 dBm/Hz | - 161 dBm/Hz | - 165 dBm/Hz |
Amplitude accuracy | < 1.2 dB | < 0.7 dB | < 0.7 dB | < 0.7 dB |
Price |
Frequency resolution | 1 Hz |
Internal reference frequency | 10 MHz |
Vertical logaritmic range | 10 dB tot -100 dB |
Built-in storage | 256 MB |
Built-in pre-amp | Yes |
AMK (optional) | CHP/ACPR/TOI/OBW/Monitor/Harmonic/CNR |
AMA (optional) | AM/FM |
DMA (optional) | ASK/FSK/PSK/QAM |
EMI filter (optional) | 200 Hz, 9 kHz, 120 kHz, 1 MHz |
Display | 10.1" touchscreen colour 1024 x 600 |
Interfaces | USB host/device, LAN, RJ-45 |
Dimensions | 393 x 207 x 116.5 (mm) |
Weight | 4.4 kg |
EMI pre-compliance software | The EMI pre-compliance software provides Quasi-peak detector and EMI filters. These can be used to test whether equipment meets the requirements of the EMI regulations. | |
SRF5030T EMI probes | This near field probe set contains 3 magnetic field probes (20, 10 and 5 mm resolution) and 1 electric field probe (5 mm resolution) for pre-compliance testing of printed circuit boards. | |
Reflection measurements | In combination with the Tracking generator this option can be used to measure the reflection of antennas. | |
Advanced measuring kit | This kit offers measurements like "Channel power", "ACPR", "Time domain power", "Occupied bandwidth", "Third order intercept" and "Carrier to Noise Ratio". It extends the analyzers' measurement capabilities enormously. | |
Digital Modulation Analysis module | Digital modulate function for the Siglent SSA3000X-PLUS spectrum analyzers, including: ASK, FSK, MSK, xPSK and xQAM. | |
Analog Modulation Analysis module | Analog Modulation Analysis function for the Siglent SSA3000X-PLUS spectrum analyzers, including: AM/FM. |
