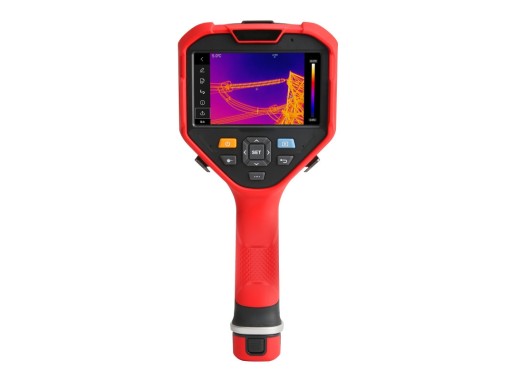

UNI-T UTi760X thermal imaging camera
Details
The UNI-T UTi760X is a high-end thermal imaging camera designed to handle a wide range of use cases. The thermal camera features an IR resolution of 640x512, which can be increased to 1280x1024 with the super-resolution function, and has a high accuracy of ±1°C or ±1% at an ambient temperature range of 0°C to 120°C. Furthermore, the UTi760X features high sensitivity with a NETD of ≤35mK. This enables the user to precisely distinguish even the smallest temperature differences. In addition to that, it has a temperature range of -20°C to 1200°C (2200°C with a high-temperature lens). Additionally, the device comes with a laser rangefinder capable of measuring distances up to 50 metres.
The lens of the UTi760X is also interchangeable with various optional lenses to best suit your specific use case. The device can automatically calibrate the lens upon replacement. The camera also comes wth Wi-Fi and Bluetooth connectivity, allowing you to transmit images or connect to other devices using the smart meter function. Finally, the camera has a large 5" touchscreen display with an IP54 rating.
Please contact us if you need more information or a quote for a specific optional lens.
Lens options
| Type | Focal length | Focal distance | FOV |
| Standard | 18 mm | 15 cm | 24° x 19.3° |
| Wide-angle | 9.6 mm | 10 cm | 46° x 37° |
| Telephoto | 36 mm | 1 m | 12° x 9.6° |
| Ultra telephoto | 62.8 mm | 2 m | 7° x 5.6° |
| High temperature | 18 mm | 15 cm | 24° x 19.3° |
| Macro | 18 mm | 27 mm | - |
Specifications
| Temperature range | -20 - 1200 °C 500 - 2200 °C with high temperature lens |
| Accuracy | ±1 °C or ±1% (whichever is greater) for 0 - 120 °C ±1.5 °C or ±1.5% (whichever is greater) for 120 - 1200 °C |
| NETD | ≤35 mK |
| Min. focus distance | 15 cm (standard lens) |
| Focal length | 18 mm (standard lens) |
| IR resolution | 640 x 512 (327680 pixels)
1280 x 1024 (super-resolution function) |
| IR thermal resolution | 0.1 °C |
| Frame rate | 30 Hz |
| FOV | 24° x 19.3° (standard lens) |
| Display | 5" touchscreen (1280 × 720 pixels) |
| Colour palettes | White hot, black hot, red hot, ironbow, rainbow, rainbow HC, lava, user-defined palette |
| Storage | Built-in 128GB + 64GB SD card |
| Battery | Two detachable Li-ion battery packs, each with up to 5 hours battery life |
| Dimensions | 140.7 × 171 × 304.4 mm |
| Weight | 1.305 kg |
Accessories
- 2x Li-ion battery pack
- Standard lens
- Power adapter
- Lens cap
- Wrist strap
- HDMI cable
- USB-C cable
- USB-C to USB-A cable
- Tool box
- Cleaning cloth
- 64GB micro SD card
Pros and cons
- Low NETD
- High accuracy
- High resolution
- Interchangeable lens
Downloads
| UTi760X data sheet |  (3.34 MB) | Download |
| UTi760X quick start guide | (56.93 MB) | Download |
