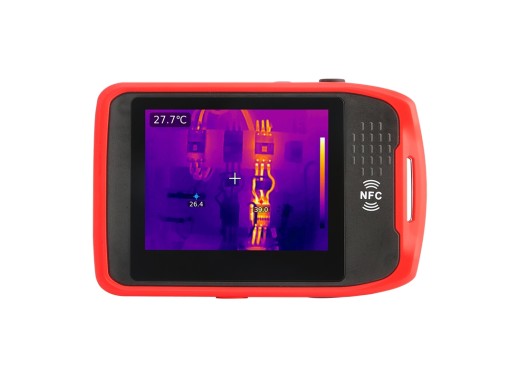

UNI-T UTi720T thermal imaging camera
Details
The UNI-T UTi720T is a capable pocket-sized thermal imaging camera. The camera features an excellent IR resolution of 256x192 and a large temperature range of -20℃ to 550℃. This device is perfect for building diagnosis, automotive maintenance, and inspecting electrical equipment. Despite the UTi720T's small size, it's just as capable as many larger handheld devices, mainly sacrificing battery size rather than camera performance.
The UTi720T also features several notable functions, including its smart meter, which enables connection to other equipment via Bluetooth. Furthermore, the camera has Wi-Fi connectivity, allowing you to stream images live. Moreover, the thermal camera can detect NFC, allowing for seamless connection with your phone. Finally, the camera has a clear 3.5" touchscreen display.
Specifications
| Temperature range | -20 to 550 °C |
| Accuracy | ±2 °C or ±2% (whichever is greater) |
| Focal length | 1.6 mm |
| IR resolution | 256 x 192 (49152 pixels) |
| Frame rate | 25 Hz |
| FOV | 56° x 42° |
| Emissivity | 0.01 - 0.99 adjustable (default 0.95) |
| Display | 3.5" (640 × 480 pixels) |
| Colour palettes | White hot, black hot, red hot, ironbow, lava, rainbow, rainbow HC |
| Storage | 12 GB internal |
| Protection | IP54 & 1 meter drop proof |
| Battery | Up to 2.2 hours (with Wi-Fi off) |
| Dimensions | 133.05 × 85.4 × 24.1 mm |
| Weight | 213 g |
Accessories
- Soft carry case
- Wrist strap
- Type-C USB cable
Pros and cons
- Wi-Fi and Bluetooth connection
- Pocket form factor
- Short battery life
Downloads
| UTi720T datasheet |  (1.35 MB) | Download |
| UTi720T quick start guide | (31.37 MB) | Download |
