Guide IR PF210S thermal camera
Details

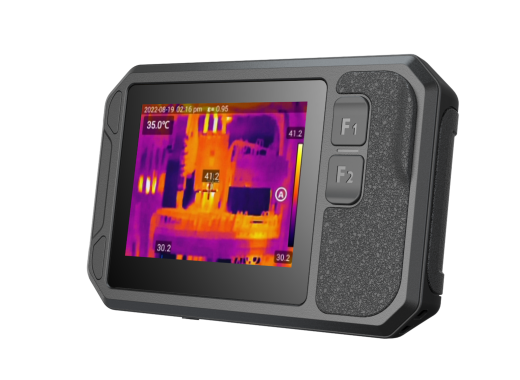

The Guide IR PF210S is a pocket-sized thermal camera with a 256 x 192 pixels infrared detector and a -20 °C to 550 °C temperature range. Morever, the thermal camera is a non-contact inspection tool which makes it great for finding hidden deficiencies of electrial equipment in a safe manner. Furthermore, the PF210S has a laser pointer and a laser rangefinder which provides an accurate range-to-target up to 8 metres and intelligent area calculation of a rectange object. Appealing features of the PF210S are a 3.5" LCD touchscreen, a 4 hour battery life, and a built-in Wi-Fi function which allows users to share information quickly and easily. Finally, the thermal camera has an IP54 rating which means that it is protected from water sprays from all directions and against contamination from dust and other particles.
For tutorials on the Thermotools software, the Guide Youtube account, seen here, contains many videos on how to use the software.
Specifications
| Temperature range | -20 to 550 °C |
| Accuracy | ±2 °C or ±2% (whichever is greater) |
| Focal distance | Min. 30 cm |
| IR resolution | 256 x 192 (49152 pixels) |
| NETD | <60 mK |
| Frame rate | 25 Hz |
| FOV | 56° x 48° |
| Display | 3.5" |
| Colour palettes | White Hot, Black Hot, Iron Red, Hot Iron, Rainbow, Arctic |
| Image modes | IR, VIS, MIF, PIP |
| Storage | 16GB |
| Battery | Up to 4 hours |
| Dimensions | 138 x 89 x 34.4 mm |
| Weight | ≤ 296 g |
Accessories
The Guide IR PF210S comes by default with:
- Carry case
- Wrist strap
- Power adapter
- Adapter plug
- Type-C USB cable
- Data download card
Pros and cons
- Comes with a Wi-Fi function
- Has an IP54 rating
- High resolution thermal camera
Downloads
| PF series specifications |  (351.59 KB) | Download |
