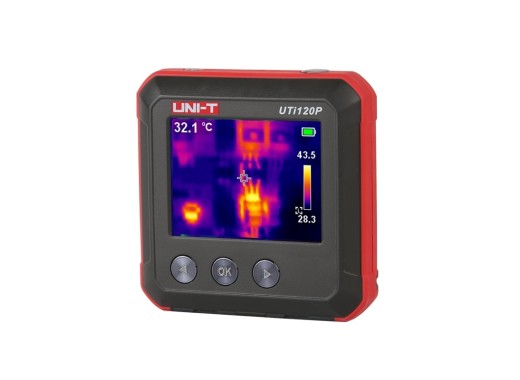

The UTi120P is a pocket-size thermal imaging camera designed for everyday situations. The wide temperature range, the good resolution and accuracy and the large field of view make this camera useful for many purposes.
Its small size also makes it very easy to take the camera with you to take measurements on location.
Furthermore, the UTi120P has functions such as High/Low temperature tracking, automatic power-off and the possibility to take and store pictures. It is also possible to choose between three colour palettes (Iron, Rainbow and Grey). The camera is powered by
a rechargeable Lithium battery that can be charged through the USB interface.
Temperature range | -20 - 400 ℃ |
Resolution thermal sensor | 120 x 90 Pixels |
NETD | ≤60 mK |
Accuracy | ± 2℃/% |
Emissivity | 0.1-0.99 (standard 0.95) |
Field of view | 50° (B) x 38° (H) |
Display | 2.4" LCD (320x240 Pixels) |
Images | .BMP (320x240 Pixels) |
Interface | USB |
Battery | Lithium (rechargeable, ~3.5 uur working time) |
Storage | 16 GB Micro SD card |
Dimensions | 76 x 76 x 24 mm |
The UTi120P comes with:
UTi120P manual |
(4.61 MB) | Download |
