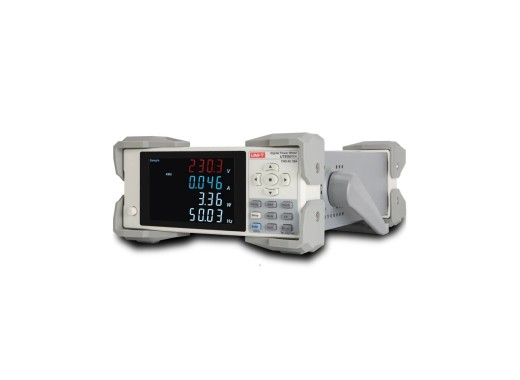

UNI-T UTE9811+ power meter
Details
The UNI-T UTE9811+ is a power meter, specifically designed for measurements on AC power supplies. The power meter performs measurements on 4mm screw terminals. It can measure up to 12kW and has a frequency range of 40-70Hz.
This meter can analyze 5 different parameters with an accuracy of ±0.4%. The display allows 4 parameters to be displayed on the same screen.
The meter has an RS-232/RS-485 port that can be connected to a PC or PLC and supports Modbus and SCPI protocols for remote control.
The default 3-year warranty can be extended to 5 years by registering your instrument.
Model overview
| Models | UTE9802+ | UTE9806+ | UTE9811+ |
|---|---|---|---|
| Voltage range | 3.0 V - 600 V | 0.5 V - 600 V | 3.0 V - 600 V |
| Current range | 0.5 mA - 20 A | 0.05 mA - 10 A | 5 mA - 20 A |
| Frequency range | DC, 40 Hz - 400 Hz | 40 Hz - 400 Hz | 40 Hz - 70 Hz |
| Measurement mode | AC / DC / AC + DC (T-RMS) | AC | AC |
| Current resolution | 0.1 mA | 0.01 mA | 1 mA |
| Measurement parameters | V, A, W, PF / Hz | V, A, W, VA, PF, VHz, AHz, Vpk, Apk | V, A, W, PF / THD / Hz / CF |
| Price |
Specifications
| Maximum power | 12000 W |
| Measurement precision | ±(0.4% + 0.1% range) |
| Voltage resolution | 0.01 V |
| Power resolution | 10 mW |
| Communication interface | RS-232 / RS-485 |
| Dimensions | 214 x 88 x 340 mm |
| Weight | 3.2 kg |
Accessories
The UTE9811+ comes with:- 1x Specialized power cable
Downloads
| UTE9800 series - User manual |  (2.3 MB) | Download |
| UTE9800 series - Datasheet | (895.78 KB) | Download |
| UTE9800 series - Programming Manual | (552.17 KB) | Download |
