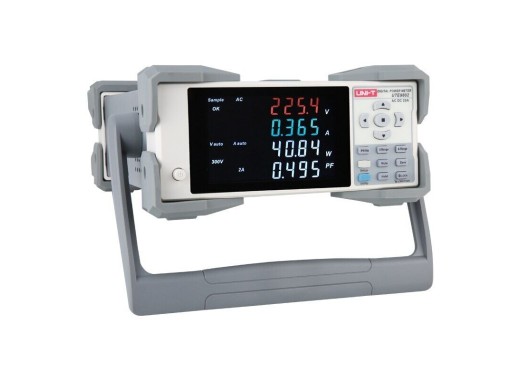

UNI-T UTE9802+ power meter
Details
The UNI-T UTE9802+ is a power meter, specifically designed for measurements on DC and AC power supplies. The power meter performs measurements on 4mm screw terminals. It can measure up to 12kW.
This meter can analyze 5 different parameters with an accuracy of ±0.4%. The display allows 4 parameters to be displayed on the same screen.
The meter has an RS-232/RS-485 port that can be connected to a PC or PLC and supports Modbus and SCPI protocols for remote control.
The default 3-year warranty can be extended to 5 years by registering your instrument.
Model overview
| Models | UTE9802+ | UTE9806+ | UTE9811+ |
|---|---|---|---|
| Voltage range | 3.0 V - 600 V | 0.5 V - 600 V | 3.0 V - 600 V |
| Current range | 0.5 mA - 20 A | 0.05 mA - 10 A | 5 mA - 20 A |
| Frequency range | DC, 40 Hz - 400 Hz | 40 Hz - 400 Hz | 40 Hz - 70 Hz |
| Measurement mode | AC / DC / AC + DC (T-RMS) | AC | AC |
| Current resolution | 0.1 mA | 0.01 mA | 1 mA |
| Measurement parameters | V, A, W, PF / Hz | V, A, W, VA, PF, VHz, AHz, Vpk, Apk | V, A, W, PF / THD / Hz / CF |
| Price |
Specifications
| Maximum power | 12000 W |
| Measurement precision | ±(0.4% + 0.1% range) |
| Voltage resolution | 0.01 V |
| Power resolution | 1 mW |
| Communication interface | RS-232 / RS-485 |
| Dimensions | 214 x 88 x 340 mm |
| Weight | 3.3 kg |
Accessories
The UTE9802+ comes with:- 1x Specialized power cable
Downloads
| UTE9800 series - User manual |  (2.3 MB) | Download |
| UTE9800 series - Datasheet | (895.78 KB) | Download |
| UTE9800 series - Programming Manual | (552.17 KB) | Download |
