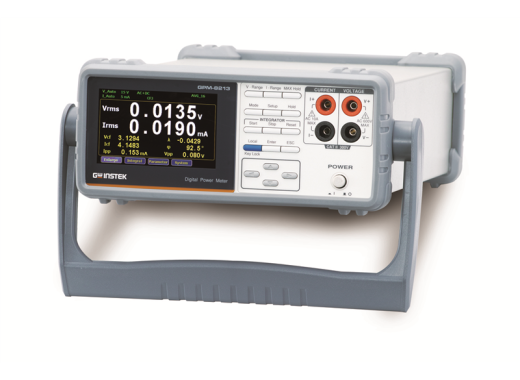

GW Instek GPM-8213 power meter
Details
The GPM-8213 from GW Instek is a power meter specifically designed for measurements on DC and AC power supplies. This meter can analyse 19 different parameters with a high basic accuracy of ±0.1%. The monitor has two display modes with which 4 or 8 of these parameters can be displayed.
The meter has an RS-232C, USB and LAN connection and can be optionally equipped with a GPIB interface. The meter can be used stand-alone for measurements or can also, via one of these interfaces, be connected to a PC to edit programs and store data.
The GPM-8213 provides the optimum measurement support for tests that must comply with IEC 62301/EN 50564 certification. This is included:
- Bandwidth of DC~6kHz
- Minimum current value of 5mA (resolution of 0.1µA)
- Power measurement resolutions (1mW for the minimum current/voltage values; 1µW for the maximum current/voltage values)
- A crest factor reaching 3 (half range reached 6)
- Measurement for the total harmonic distortion
For larger voltage/current measurements, the GPM-8213 also offers the possibility to connect an external transformer.
Model overview
| Model | GPM-8213 | GPM-8310 |
|---|---|---|
| Bandwidth | DC, 45 Hz - 6 kHz | >DC, 0.1 Hz - 100 kHz |
| Number of measurement parameters | 19 | 25 |
| Maximum voltage, current | 600 Vrms, 20 Arms | 600 Vrms, 20 Arms |
| Display | 4” TFT LCD | 5” TFT LCD |
| Price |
Specifications
| Maximum voltage | 600 Vrms |
| Maximum current | 20 Arms |
| Tested frequency bandwidth | DC~6kHz |
| Measurable parameters | Voltage (Vdc, Vrms, V+pk, V-pk, VHz) Current (Idc, Irms, I+pk, I-pk, IHz) Power (P, P+pk, P-pk) Device Power (VA) Reactive Power (VAR) Power Factor (PF) Phase Angle (DEG) Crest Factor (CFV/CFI) Total Harmonic Distortion (THDV/THDI) |
| Measurement precision | ±0.1% of measurement |
| Power resolution | 1mW |
| Display | 4" TFT LCD |
| Connectivity | USB (Host/Device), Lan, RS-232C, (Optional GPIB) |
| Dimensions | 270 x 110 x 350 mm |
| Weight | 2.9 kg |
Accessories
The GPM-8213 comes standard with:
- Safety Instruction Sheet
- Power cord
- Test lead GTL-209
- CD (including complete user manual and USB driver)
- Declaration of traceable calibration
Options
| GPIB interface | ||
| GPM-001 Test Fixture | This option makes it possible to directly connect a device to be tested to the 4 measurement terminals of the GPM-8213. | |
Downloads
| GPM-8213 Brochure |  (2.13 MB) | Download |
| GPM-8213 Datasheet | (2.09 MB) | Download |
| GPM-8213 User Manual | (2.8 MB) | Download |
| DTC sample | (126.04 KB) | Download |
