After a few days of testing and learning the operation of this oscilloscope, I have been pleasantly impressed.
The ease of use with very intuitive and well organized menus and front controls.
The large number of useful functions that until recently were not available in entry-level equipment, for example "alternet trigger" to display two signals of different frequencies.
In my opinion, from the point of view of a hobbyist looking for affordable instrumentation, it is an option that more than meets my expectations.

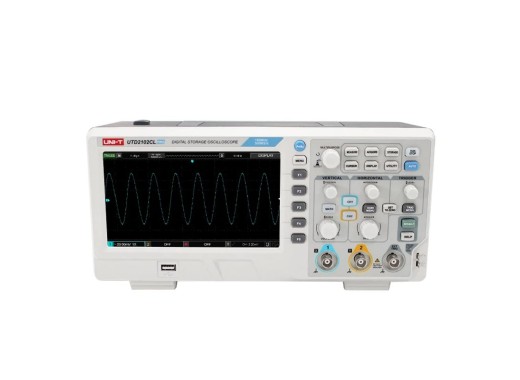

UNI-T UTD2102CL+ oscilloscope
Details
The UNI-T UTD2102CL+ is a 2-channel oscilloscope with an excellent price-performance ratio. For its price, the scope features a high bandwidth of 100MHz and a large sample rate of 500MSa/s. There is also a USB interface for storing signals and measurement results.
The default 3-year warranty can be extended to 5 years by registering your instrument.
Specifications
| Bandwidth | 100 MHz |
| Channels | 2 |
| Sample rate | 500 MSa/s |
| Memory depth | 64Kpts |
| Waveform capture rate | ≥ 5000 wfms/s |
| Trigger types | Edge, Pulse, Alternate |
| Vertical scale | 1 mV/div - 20 V/div |
| Horizontal scale | 2 ns/div - 50 s/div |
| Display | 7" 800x480 TFT LCD |
| Weight | 2.2 kg |
| Dimensions | 306 x 147 x 122 mm |
Accessories
The UNI-T UTD2102CL+ is supplied including:
- 2 Probes
- Power Cord
- USB Cable
- PC Software
Downloads
| UTD2000CL+ datasheet |  (6.02 MB) | Download |
| UTD2000 series manual | (2.03 MB) | Download |
Similar products
Latest customer reviews
Read all reviews (2)
Review by Rafa
Posted on 15/05/2023
Review by Fabio
Posted on 09/03/2023
I've had the opportunity to taste what the competitors offered in the 200 EUR range and I picked this one. Yes it's a little bit pricier but it's definitely better quality as expect from Uni-T. The probes are good quality, the knobs they all have their appropriate sizes and feedback, the channels have all their respective activation LEDs and selection LEDs, the unit has a forced fan ventilation.
I know that Uni-T don't cut corners. Some reviewers complained about features in lesser Uni-T models: this one has got the lot, and plus it is properly built. I am pleased with with FFT and Lissajous pattern functions. If I can niggle a bit the screen brightness is adequate: I keep it at 90% and I'm fine with it.
I know that Uni-T don't cut corners. Some reviewers complained about features in lesser Uni-T models: this one has got the lot, and plus it is properly built. I am pleased with with FFT and Lissajous pattern functions. If I can niggle a bit the screen brightness is adequate: I keep it at 90% and I'm fine with it.
