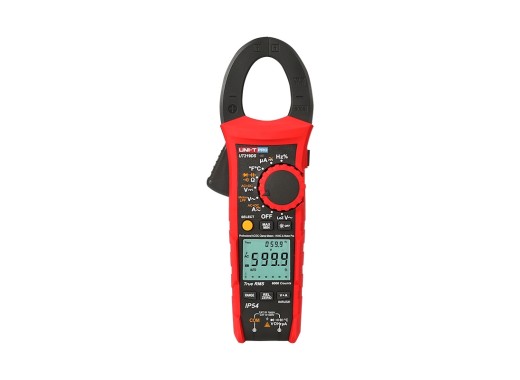

UNI-T UT219DS clamp meter
Details
The UNI-T UT219DS is a True-RMS current clamp that can measure AC and DC current up to 600A. The meter has a 6000-count display with backlight, making it easy to read the measurements and a flashlight for exploring darker spaces. In addition, it is possible to measure AC and DC voltages, resistance, capacity, frequency, duty cycle and temperature. The meter is industrially designed, it has an IP54 rating and it is able to withstand drops from 2 meters. The UT219DS is a solid current clamp and is suitable for professional use. Furthermore, a useful feature of this current clamp is the Bar Graph, which is fast and updates 20 times per second. It shows how a measured value changes during the measurement. Finally, the UT219DS has a dual V+A display, which can display voltage and current at the same time.
For a similar model without DC current measurement, see UNI-T UT219E .
Specifications
| Display resolution | 6000 counts |
| Max. DC current | 600 A |
| Max. AC current | 600 A |
| Max. DC voltage | 1000 V |
| Max. AC voltage | 1000 V |
| Max. resistance | 60 MΩ |
| Max. capacitance | 60 mF |
| Frequency | 600 Hz ~ 40 MHz |
| Duty cycle | 0.1% ~ 99.9% |
| Temperature | -40 ℃ ~ 1000 ℃ |
| True-RMS | Yes |
| LCD backlight | Yes |
| Other functions | Auto range, Diode, Data hold, ZERO mode, Min/Max record, auto power off and low battery indication |
| Maximum jaw size | 33 mm |
| Power supply | 3x 1.5 V batteries |
| Weight | 310 g |
| Dimensions | 234.6 x 82 x 47 mm |
Accessories
The UT219DS is supplied including:
- 3x 1.5V battery
- Test leads
- Storage bag
- Point contact temperature probe
Pros and cons
- Fast updating bar graph
Downloads
| UT219 Series Datasheet |  (332.96 KB) | Download |
| UT219 Manual | (16.93 MB) | Download |
