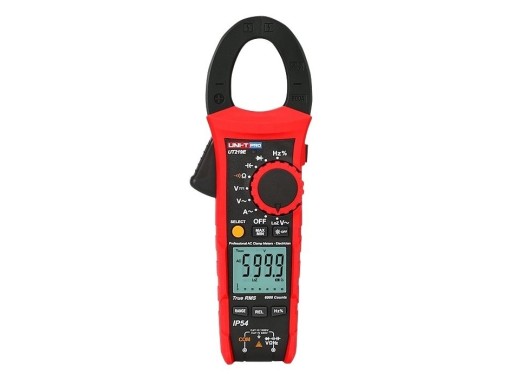

UNI-T UT219E clamp meter
Details
The UNI-T UT219E is a professional True-RMS clamp meter designed for accurate current and voltage measurements in harsh environments. It can measure up to 600A AC current and up to 1000V AC and DC voltages with a jaw opening size of 33mm. In addition, it is possible to measure resistance, capacity, frequency, and duty cycle. The meter has a 6000-count display with a measurement sampling rate of 3 times per second. The UT219E has a backlight as well, making it easy to read the measurements and a flashlight for exploring darker spaces. Furthermore, a useful feature of this current clamp is the Bar Graph, which updates 10 times per second, showing how a measured value changes during the measurement. Other functions include data hold, relative mode, low battery indication, auto power off, and an auto backlight. Additionally, the UT219E is IP54 rated for dust and water resistance and can withstand drops from 2 meters.
For a similar model with DC current measurement, see UNI-T UT219DS.
Specifications
| Display resolution | 6000 counts |
| Max. AC current | 600 A |
| Max. AC voltage | 1000 V |
| Max. DC voltage | 1000 V |
| Max. resistance | 60 MΩ |
| Max. capacitance | 60 mF |
| Frequency | 10 Hz - 10 MHz |
| Duty cycle | 0.1% ~ 99.9% |
| True-RMS | Yes |
| LCD backlight | Yes |
| Other functions | Data hold, Relative mode, Low battery indication, Auto power off |
| Maximum jaw size | 33 mm |
| Power supply | 3 x 1.5 V batteries |
| Dimensions | 234.6 x 82 x 47 mm |
| Weight | 310 g |
Accessories
The UNI-T UT219E comes with:- 3x 1.5V R03 batteries
- Test leads
- Carrying bag
Pros and cons
- Fast updating bar graph
Downloads
| UT219 Series Datasheet |  (332.96 KB) | Download |
| UT219 Manual | (16.93 MB) | Download |
