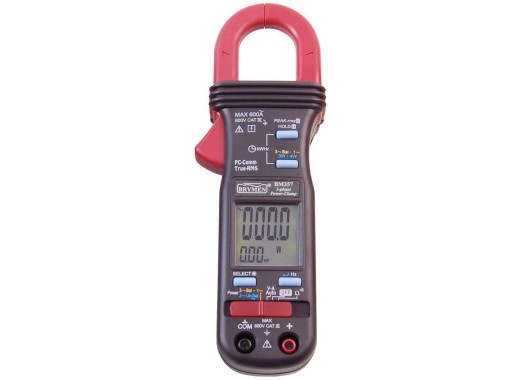

The Brymen BM357s is a True-RMS current clamp with which measurements can easily be done on single-phase or three-phase systems. The clamp can measure AC current and AC & DC voltage. Besides, the BM357s is able to measure Power Factor, resistance, frequency, continuity and can make kWhr measurements. The meter can log the power consumption and is able to do measurements on unbalanced 3-phase systems.
This current clamp can be used with an optional PC USB connection kit! Click here!
Specifications
| Display |
6000 count + 10.000 count for Ω,Hz |
| Measure frequency |
2 measurements per second |
| Measurement range and best accuracy |
| Measurement | Range | Accuracy |
| AC voltage (leads) | 0.1 - 600 V | ± (0.5 % +5) |
| AC current (clamp) | 0.01 - 600 A | ± (1.0 % +5) |
| DC voltage (leads) | 0.01 - 600 V | ± (0.5 % +5) |
| Resistance (leads) | 0.1 - 999.9 Ω | ± (1.0 % +6) |
| Frequency | 5 - 500 Hz | ± (0.5 % +4) |
| 1, 3 phase power | 0 - 600 kVA | ± (2.0 % +6) |
|
| Maximum conductor size |
26 mm |
| Dimensions |
189 x 78 x 40 mm |
| Weight |
192 gram |
Accessories
The Brymen BM357s is supplied including:
- Test leads
- Batteries
- Carrying pouch
(4.46 MB)
