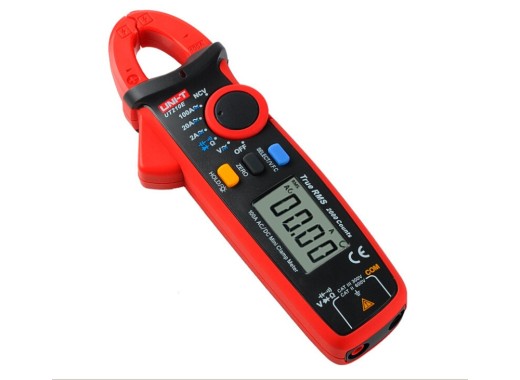

The UNI-T UT210D is a handheld multimeter with an integrated current clamp. By means of the current clamp, AC and DC current up to 200 A can be measured safely. Furthermore, this multimeter can also measure DC/AC voltages, resistance, capacity, frequency and temperature. The 2000 counts
display shows just enough for all basic applications.
Specifications
| Measurement range and accuracy |
| DC voltage | 0.1 mV ~ 600 V (± 0.7% + 3) |
| AC voltage | 1 mV ~ 600 V (± 1% + 3) |
| DC current | 1 mA ~ 200 A (± 2% + 3) |
| AC current | 1 mA ~ 200 A (± 2.5% + 5) |
| Resistance | 0.1 Ω ~ 20 MΩ (± 1% + 2) |
| Capacity | 1 pf ~ 20 mF (± 4% + 5) |
| Frequency | 60 kHz (± 0.1% + 4) |
| Temperature | -40°C ~ 1000°C (± 1% + 3) |
|
| Safety |
CAT II 600 V and CAT III 300 V |
| Display count |
2000 |
| Other functions |
Auto range, True RMS, diode test, data hold, auto power off, full icon display and low battery indication |
| Power supply |
AAA 1.5 V batteries x2 |
| Clamp size |
17 mm |
| LCD size |
39.3 mm x 26.5 mm |
| Weight |
170 g |
| Dimensions |
175 mm x 60 mm x 33.5 mm |
Accessories
The UNI-T UT210D is supplied including:
- Test wire
- Batteries
- Carrying bag
