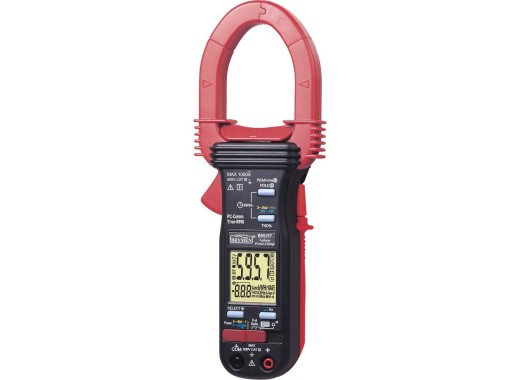

Brymen BM157s clamp meter

128.1 €128.10 Excl. VAT
Loading stock info
  •
Product number: ELE001767

Be the first to review this product

Lowest price guaranteed

Details

The BM157s clamp multimeter is the top device in the 15X series and has good performance. It can measure True-RMS AC-voltage and current, Total Harmonic Distortion, resistance, continuity, power factor and some other values like kWHr. It can log power consumption and can measure unbalanced 3 phase lines. Features the BM155 doesn't have.

This multimeter can be used with an optional PC USB connection kit! Click here!

Specifications

Display 6000 count + 10.000 count for Ω,Hz
Measure frequency 2 measurements per second
Measurement range and best accuracy
MeasurementRangeAccuracy
AC voltage (leads)0.1 - 600 V± (0.5 % +5)
AC current (clamp)0.01 - 1000 A± (1.0 % +5)
DC voltage (leads)0.01 - 600 V± (0.5 % +5)
Resistance (leads)0.1 - 999.9 Ω± (1.0 % +6)
Frequency5 - 500 Hz± (0.5 % +4)
THD (leads)0.0 % - 450 % (2nd - 51st harmonic)± (1.5 % +6)
1, 3 phase power0 - 600 kVA± (2.0 % +6)
Dimensions 224 x 78 x 40 mm (l,w,h)
Weight 224 gram

For more information regarding the scopes the datasheet or the manual listed below can be consulted.

Accessories

All meters in the BM157s series come bundled with:

  • Test leads
  • Batteries
  • User manual
  • Carrying pouch

Downloads

Datasheet BM150 series
pdf (2.28 MB)Download
Manual BM150 series
pdf (3.23 MB)Download
