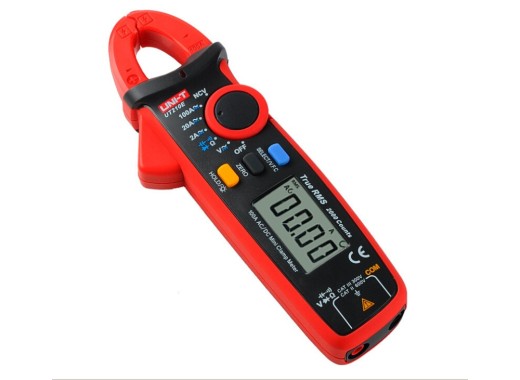

The UNI-T UT210E is a handheld multimeter with an integrated current clamp. By means of the current clamp, AC and DC current up to 100 A can be measured safely. Furthermore, this multimeter can also measure DC/AC voltages, resistance and capacity. The 2000 counts
display shows just enough for all basic applications.
Specifications
| Measurement range and accuracy |
| Max. DC voltage | 600 V (± 0.7% + 3) |
| Max. AC voltage | 600 V (± 1% + 3) |
| Max. DC current | 100 A (± 2% + 3) |
| Max. AC current | 100 A (± 2.5% + 5) |
| Resistance | 0.1 Ω ~ 20 MΩ (± 1% + 2) |
| Capacitance | 1 pf ~ 20 mF (± 4% + 5) |
|
| Measurement category |
CAT II 600 V and CAT III 300 V |
| Display count |
2000 |
| Other functions |
Auto range, True RMS, diode test, data hold, auto power off, full icon display and low battery indication |
| Power |
2 x AAA 1.5 V batteries |
| Clamp size |
17 mm |
| LCD size |
39.3 mm x 26.5 mm |
| Weight |
170 g |
| Dimensions |
175 mm x 60 mm x 33.5 mm |
Accessories
The UNI-T UT210E comes with:
- Test cables
- User manual
- Batteries
- Carrying bag
Downloads
(69.41 KB)
