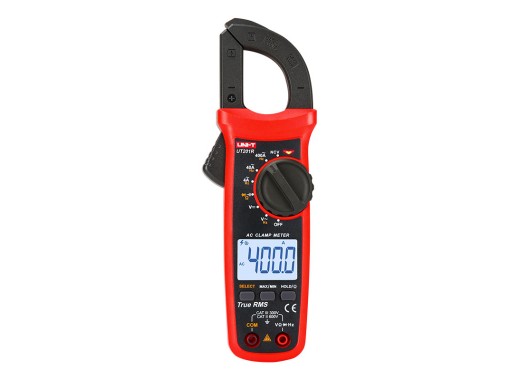

UNI-T UT201R current clamp
Details
The UNI-T UT201R is a True-RMS digital clamp multimeter which is able to measure voltages (DC/AC) up to 600V and AC currents up to 400A. The multimeter includes protection against voltages higher than 600V on all ranges, and features an audible and optical alarm. These ranges can be automatically, or manually selected. The meter is also capable of measuring resistance, continuity, and diodes. To top off the capabilities, NCV is also installed for sensing a live wire before it causes any harm. The 4-digit, 4000 counts display is perfectly accurate for all kinds of applications. The display features a rather high refresh rate of 3 times a second.
Specifications
| Measuring range and precision | |||||||||
| |||||||||
| True-RMS | Yes |
||||||||
| Safety | CAT II 600 V and CAT III 300 V | ||||||||
| Display count | 4000 | ||||||||
| LCD backlight | Yes |
||||||||
| Other functions | NCV, continuity check, auto range, diode test, data hold, max mode, auto power off, full icon display and low battery indication | ||||||||
| Power | 1.5 V batteries (x2) | ||||||||
| Clamp size | 28 mm | ||||||||
| Weight | 248g | ||||||||
| Dimensions | 215 mm x 63 mm x 36 mm | ||||||||
Accessories
The UT201R is delivered with:
- Batteries
- Carrying bag
- Measurement cables
Pros and cons
- Advantageous choice
- Near Contact Voltage (NCV)
- Automatic energy saving function
- Does not measure DC currents
Downloads
| UNI-T UT201R Datasheet |
 (1.4 MB) |
Download |
