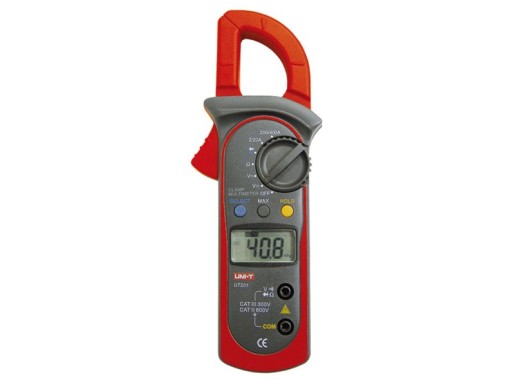

The UNI-T UT201 is a handheld multimeter with an integrated current clamp. By means of the current clamp it is safe to measure AC current up to 400 A. Furthermore, this multimeter can also measure DC/AC voltages and resistances. The 2000 counts
display is perfectly accurate for all basic kinds of applications.
Specifications
| Measuring range and precision |
| DC voltage | 0.1 mV ~ 600 V (± 0.8% + 1) |
| AC voltage | 1 mV ~ 600 V (± 1.2% + 5) |
| AC current | 1 mA ~ 400 A (± 1% + 9) |
| Resistance | 100 mΩ ~ 20 MΩ (± 1% + 2) |
|
| Safety |
CAT II 600 V and CAT III 300 V |
| Display count |
2000 |
| Other functions |
Auto range, diode test, data hold, max mode, auto power off, full icon display and low battery indication |
| Power |
1.5 V batteries (x2) |
| Clamp size |
28 mm |
| Weight |
260 g |
| Dimensions |
208 mm x 76 mm x 30 mm |
Accessories
The UT201 is delivered with:
- Batteries
- Carrying bag
- Measurement cables
Pros and cons
- Do not measure DC currents
