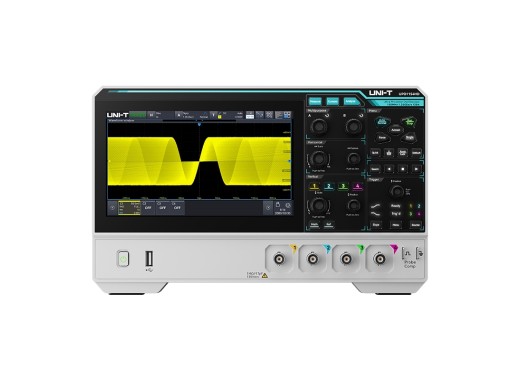

UNI-T UPO1154HD oscilloscope
Details
The UNI-T UPO1154HD is the 4-channel, 150MHz bandwidth model from the UPO1000HD series of oscilloscopes, which provides high-precision results with its 12-bit vertical resolution and an impressive 60µVrms noise floor. These scopes stand out as they provide power analysis tools as standard, which are typically only offered with higher-priced oscilloscopes or as separate, costly upgrades. Furthermore, the UPO1000HD series can perform up to a 1Mpts FFT with a centre frequency range of 0 to 625MHz, utilise a triggering system featuring zone, video, code pattern, and serial bus triggers, alongside 5 different types of protocol decodes. The inclusion of power analysis tools in this price range makes this series of oscilloscopes a great deal for those interested in power electronics, such as hobbyists, students, and professionals.
The UPO1154HD utilises a 65W USB-C PD input and supports VESA mounting for a tidy workspace. If the integrated 7" (1024x600) LCD is insufficient, the HDMI output allows for seamless display on a larger monitor. External control is also possible, with options to manage the scope via LAN/USB or through a built-in web server.
The default 3-year warranty can be extended to 5 years by registering your instrument.
Model overview
| Model | UPO1082HD | UPO1084HD | UPO1152HD | UPO1154HD |
|---|---|---|---|---|
| Channels | 2 | 4 | 2 | 4 |
| Bandwidth | 80 MHz | 80 MHz | 150 MHz | 150 MHz |
| Rise time | ≤ 4 ns | ≤ 4 ns | ≤ 2.2 ns | ≤ 2.2 ns |
| Price |
Specifications
| Memory depth | 100 Mpts (divided by number of active channels) |
| Sample rate | 1.25 GS/s (divided by number of active channels) |
| Waveform capture rate | 100,000 wfm/s |
| Vertical resolution | 12 bits |
| Vertical scale | 500 µV/div - 10 V/div |
| Horizontal scale | 2 ns/div - 1000 s/div |
| Interfaces | USB Host, USB Device, LAN, Pass/Fail, Trigger Out, HDMI |
| Decoding | I2C, SPI, UART/RS232, CAN, LIN |
| Display | 7" LCD touchscreen (1024x600) |
| Eleshop noise production rating | ★ ★ ★ ★ |
| Dimensions | 282 x 175 x 49 mm |
| Weight | 1.56 kg |
Accessories
The UPO1154HD comes with:
- Power adapter
- USB cable
- UT-P05 passive probe
Pros and cons
- Good price for memory depth
- Low noise floor
- Power analysis tools
Downloads
| UNI-T UPO1000HD datasheet |  (4.87 MB) | Download |
| UNI-T UPO1000HD programming manual | (1.96 MB) | Download |
| UNI-T UPO1000HD user manual | (12.09 MB) | Download |
